Odoo Field Service Management documentation

A guide to Odoo Field Service Management: installing the module, configuring dispatch, offers, tracking, timesheets, van stock and invoicing, and building, publishing and using the technician app.

Documents version 1.0.0Updated Oct 29, 2026

About Odoo Field Service Management Download the PDF(PDF, 8.4 MB)

Start here

In plain words: This package gives you a complete field service system for Odoo Community: an Odoo module (taqnix_fsm) for the office, and the Flutter source code of the iPhone and Android app your technicians use on the road, even without a network. The office plans and dispatches the jobs, follows the technicians on a map, and invoices the work; the technician accepts a job, drives to the customer, works with a timer, scans the parts used, takes photos, collects the signature and sends the invoice from the phone.

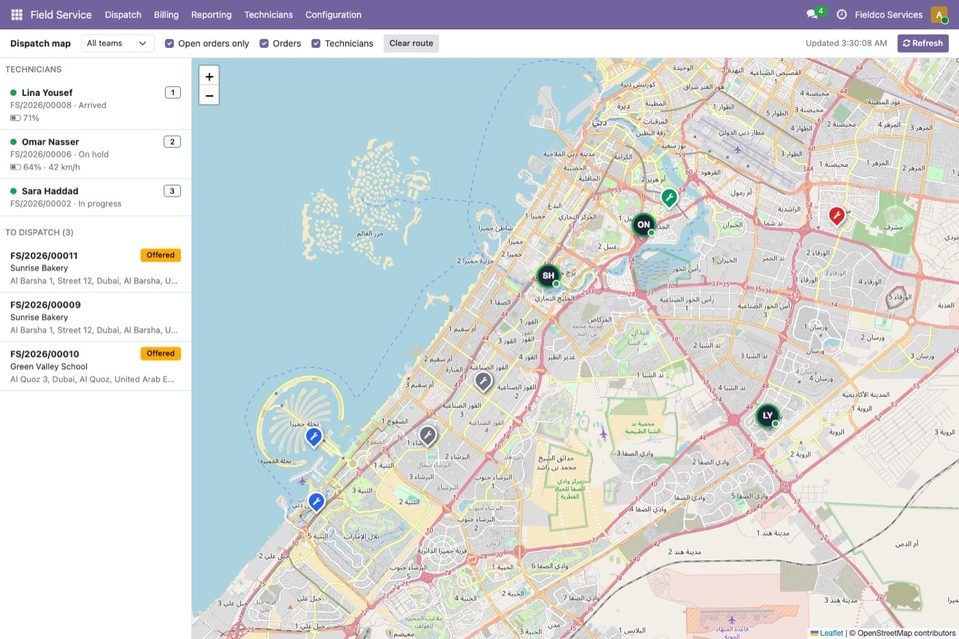

The dispatch map: technicians, jobs and the jobs waiting to be assigned.

Tip: You do not need Odoo Enterprise: the module uses only the free apps Project, Timesheets, Inventory and Invoicing, and OpenStreetMap for the maps (no paid map key).

What is in the package

Item	What it is
`taqnix_fsm.zip`	The Odoo 19 module: orders, dispatch, offers, live map, geofence, timer and timesheets, van stock, signature and photos, billing, push notifications, the API of the app, Arabic translation, automated tests.
`flutter-app-source.zip`	The Flutter project of the technician app (Android and iOS): offline database, sync engine, background location, barcode scanner, signature pad, photos, invoice. With a setup script, its own README and tests.
`documentation/`	This guide in English (`index.html`) and Arabic (`index-ar.html`), with PDFs, and `API.md` for developers.
`licensing/`	The licence (OPL-1: one purchase = one company and one app brand, updates included).
`preview-images/`	Screenshots of the app and of the Odoo screens.
`changelog.txt`	History of the versions.

How it works

Part	Where it runs	What it does
Odoo module	Your Odoo server	Keeps orders, technicians, time, parts, photos, signatures and invoices; decides who is offered a job; answers the app on `/api/fsm/v1/...`.
Dispatch map	The browser of the dispatcher	Shows technicians and jobs on OpenStreetMap, refreshes by itself, draws the route of the day.
Technician app	The phones of your technicians	Works from a local database (SQLite). Everything the technician does is stored on the phone first and sent when there is a network.
Firebase (optional)	Google	Delivers push notifications: new job, job offered, job changed or cancelled.

In plain words: A job goes through these steps: New → Assigned → On the way → (Arrived) → In progress → (On hold) → Completed. Every step is stamped with the GPS position and the time of the phone, and these stamps cannot be edited afterwards. At the end Odoo books the timesheet, moves the parts out of the stock of the van, and prepares the invoice.

What you need

Item	Details
Odoo	19.0 Community or Enterprise. The apps Project, Timesheets, Inventory, Invoicing and Contacts geolocation are installed automatically with the module.
Python libraries	`PyJWT` and `requests` (push notifications). `pip install PyJWT requests` if your Odoo does not have them.
PDF engine	`wkhtmltopdf` as for any Odoo (service report and invoice PDF).
Address	A public https address for your Odoo: the phones must reach it. A self-signed certificate does not work on phones.
Outgoing email	An outgoing mail server in Odoo (Settings → Technical → Outgoing Mail Servers) to email invoices and reports.
A computer to build the app	A Mac for iPhone and Android (Windows or Linux can build Android only), about 30 GB free.
Developer tools	Flutter 3.41 or newer, Android Studio and Xcode (current versions) with CocoaPods.
Store accounts	Google Play Console (one-time fee) and Apple Developer Program (yearly fee). You can also distribute to your own staff without the public stores (internal testing, TestFlight, Apple Business Manager).
Optional	A free Firebase project for push notifications.

Install the Odoo module

Unzip the package. Inside is taqnix_fsm.zip; unzip it to get the folder taqnix_fsm.
Copy the folder into one of the addons_path folders of your Odoo server and restart Odoo.
Log in as an administrator, activate Developer mode, open Apps and press Update Apps List.
Remove the “Apps” filter, search Field Service Management and press Install.

# or from the command line
./odoo-bin -c odoo.conf -d YOUR_DATABASE -i taqnix_fsm --stop-after-init

In plain words: After the installation a new app Field Service appears in the main menu. The installation also creates a Field Service project (for the timesheets), the products Field service labor, Callout fee and Travel, six service types, skills, checklists, hold reasons and the mail templates. You can change or delete all of them.

Important: Take a backup before installing on a production database, as for any module.

First setup in 10 minutes

Open Field Service → Configuration → Settings and walk through the sections (chapter 8). The defaults already fit most companies.
Check the labor product and its price in Invoicing (Settings, chapter 8) and the callout and travel products.
Create the technicians (chapter 7): an Odoo user, an employee for the timesheets, skills, a van stock location.
Put the parts in the vans: a normal Inventory adjustment or transfer into the location of each van.
Edit the service types to match your services: duration, price, checklist, proof required (chapter 9).
Create the first order (chapter 10), dispatch it and try it in the app (chapters 13 and 14).

Tip: The defaults are neutral enough for HVAC, plumbing, electrical, IT, appliance repair, security and facility services. Chapter 8 ends with a table of recipes by industry.

Technicians, dispatchers and managers

In plain words: There are three groups in Settings → Users → Field Service:

Group	Can	Uses
Technician	Sign in to the mobile app, see their jobs and the jobs offered to them, do the work. In Odoo they see only their own orders.	The phone
Dispatcher	Create, assign and cancel orders, use the map, create and send invoices, see all orders, technicians and tracking.	Odoo in the browser
Manager	Everything of the dispatcher plus the settings, service types, checklists, devices and the right to complete an order without the required proof.	Odoo in the browser

In plain words: To add a technician, open Field Service → Technicians → Technicians and press New: choose the Odoo user (create it first in Settings → Users; it needs no other access right), the employee that receives the timesheets, the teams, the skills, the hourly billing rate (optional) and the van stock location. Press Create van location to create a location under the stock of your warehouse. The technician receives the group Technician automatically.

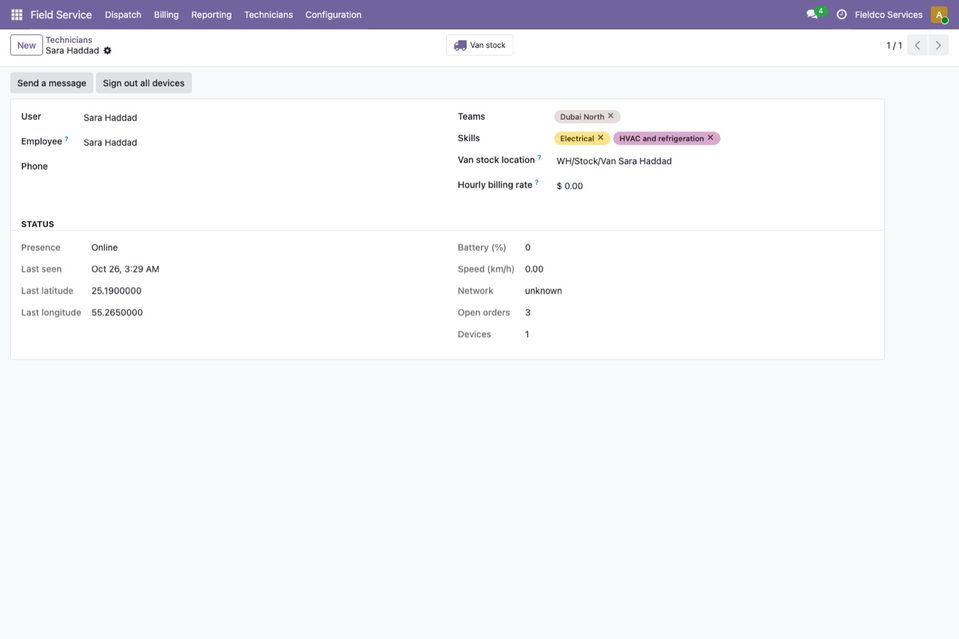

A technician: employee, teams, skills, van stock and status.

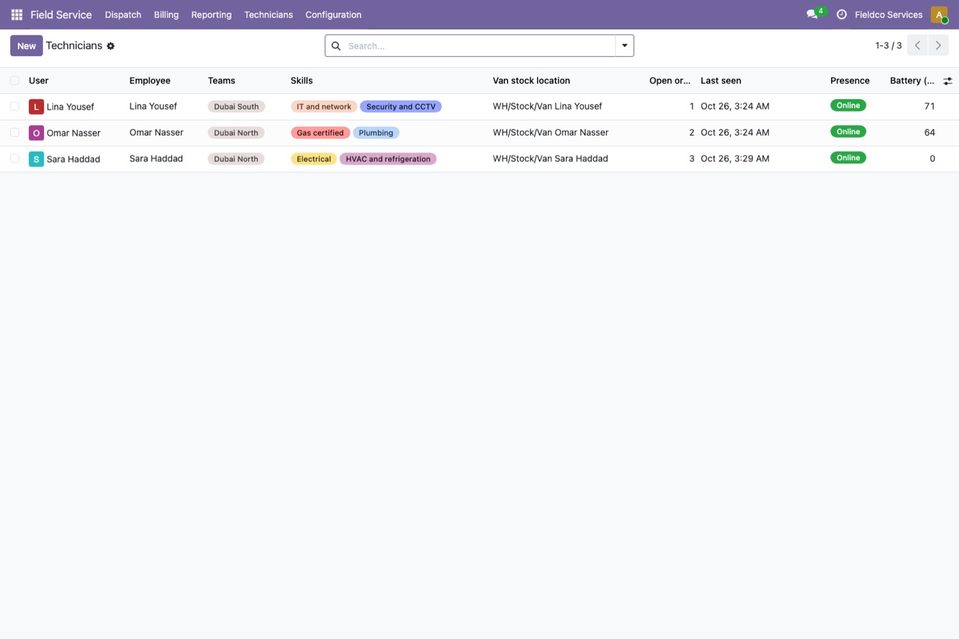

The list shows who is online, the battery and the open orders.

Tip: The Odoo login and password of the user are the ones used in the app. Give technicians a strong password; Sign out all devices on the technician form revokes every phone at once.

The settings, section by section

In plain words: Field Service → Configuration → Settings holds every rule of the company. Each block below says what it does and when to change it. Settings are per company.

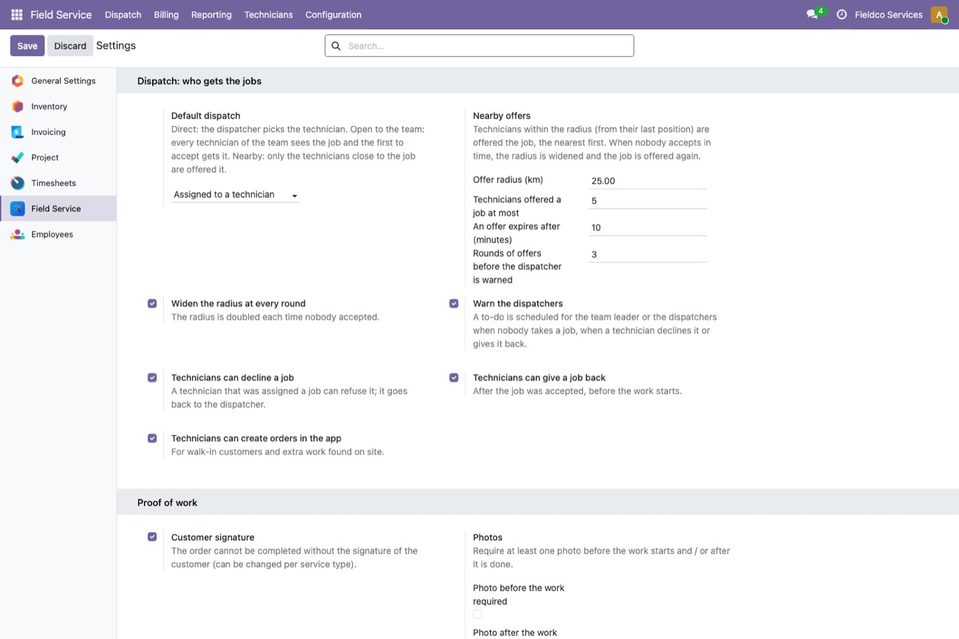

Setting	What it does
Default dispatch	Assigned to a technician: the dispatcher picks one. Open to the team: every technician of the team (with the skills needed) sees the job and the first to accept gets it. Offered to nearby technicians: only technicians within the radius of the job, from their last position, nearest first. Can be changed per order.
Offer radius, technicians offered, expiry, rounds	How far, how many, how long an offer lasts (minutes) and how many rounds are tried. If nobody accepts, the radius is doubled (optional) and the job is offered again; after the last round the dispatcher gets a to-do.
Technicians can decline / give back a job	A technician may refuse an assigned job, or give it back before the work starts. It returns to the dispatcher (or to the offer).
Technicians can create orders	For walk-in customers and extra work found on site: the technician creates an order from the phone, assigned to themselves.

Setting	What it does

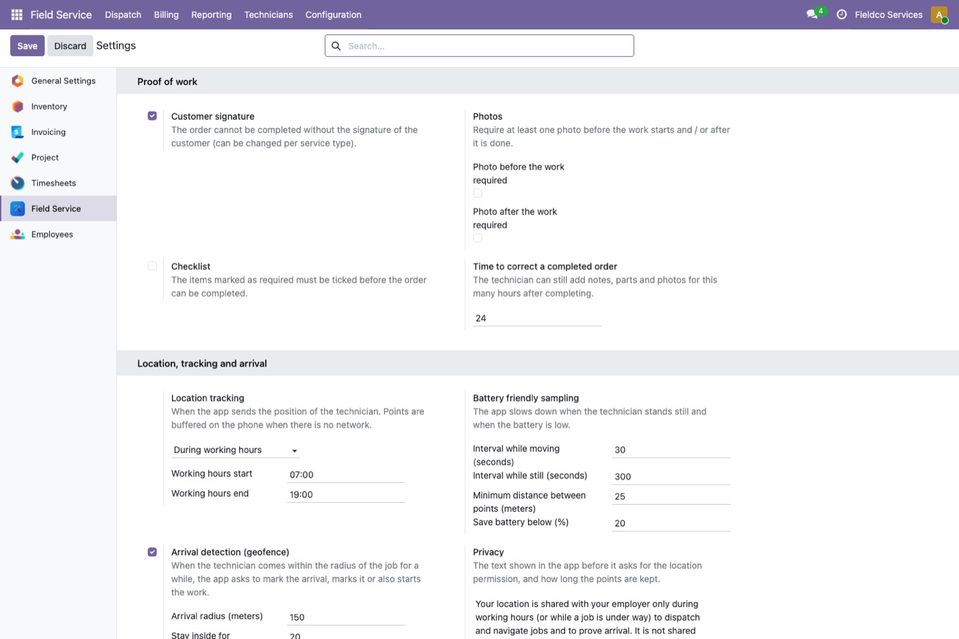

Customer signature	An order cannot be completed without the signature (can be overridden per service type).
Photos before / after	At least one photo of each kind is required.
Checklist	Items marked required on the checklist must be ticked.
Time to correct a completed order	The technician can still add notes, parts and photos for this many hours after completing.

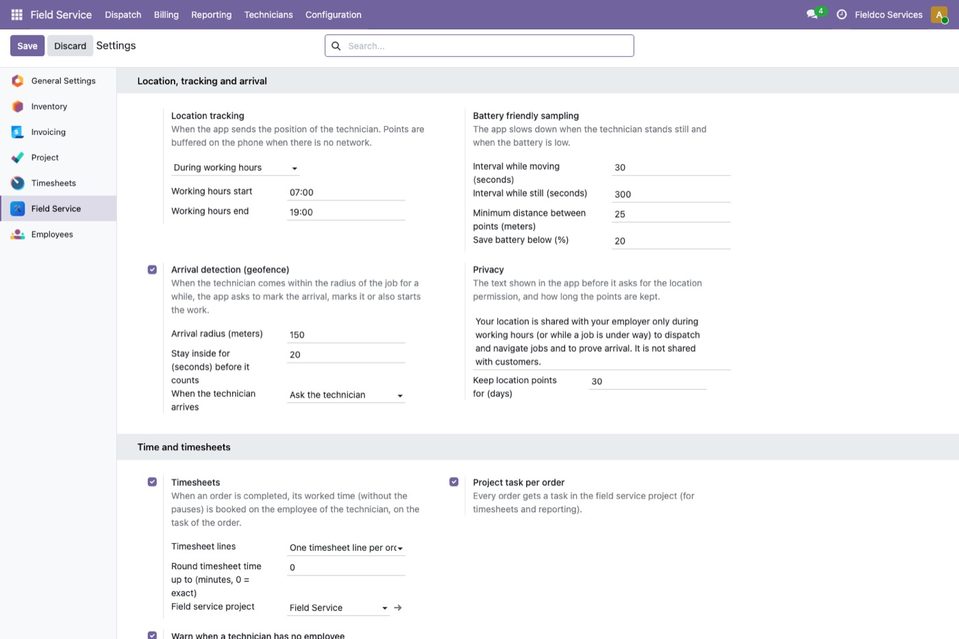

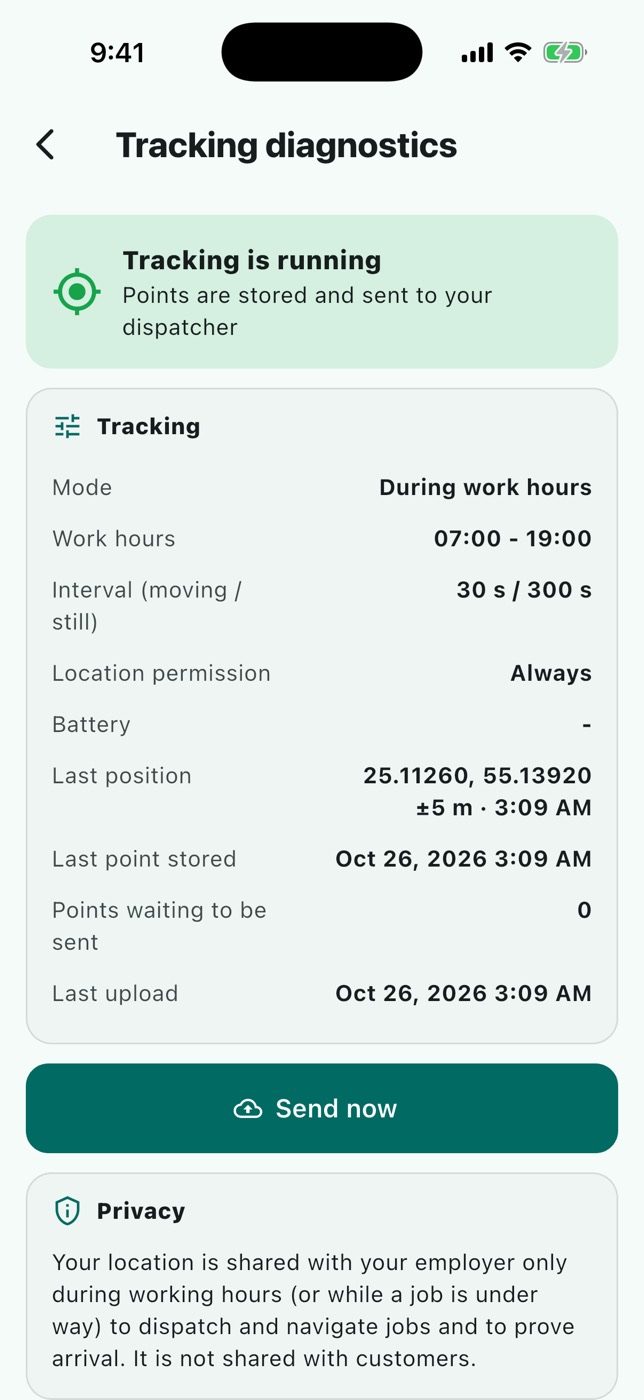

Setting	What it does
Location tracking	Off; Only while a job is under way (from On the way until Completed); During working hours (also when idle, so you can offer jobs to the nearest technician).
Battery friendly sampling	Interval while moving (default 30 s) and while still (300 s), minimum distance between points (25 m), and the battery level under which the app samples less.
Arrival detection (geofence)	Radius around the job (default 150 m) and the time the technician must stay inside (seconds). Then: Ask the technician (push + a prompt in the app), Mark as arrived, or Mark as arrived and start the work (starts the timer).
Privacy	The text shown in the app before it asks for the location permission, and how many days the location points are kept (default 30).

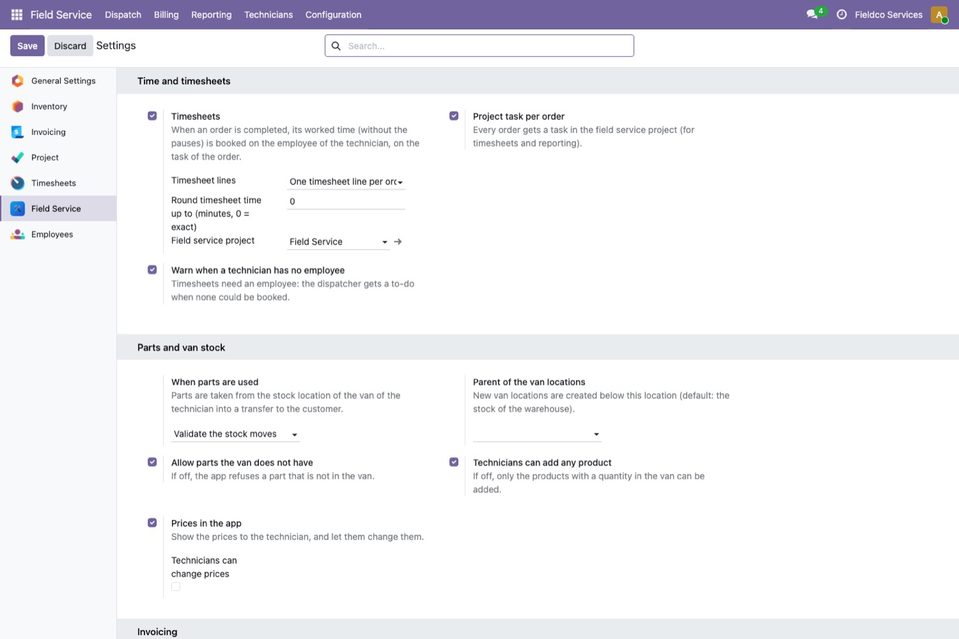

Setting	What it does
Timesheets	On completion the worked time (without the pauses that stop the timer) is booked on the employee of the technician, on the task of the order. One line per order or one per work interval; optional rounding up (for example 15 minutes).
Project task per order	Every order gets a task in the Field Service project, for timesheet reports and the Project app.
Warn when a technician has no employee	The dispatcher gets a to-do when a timesheet could not be booked.

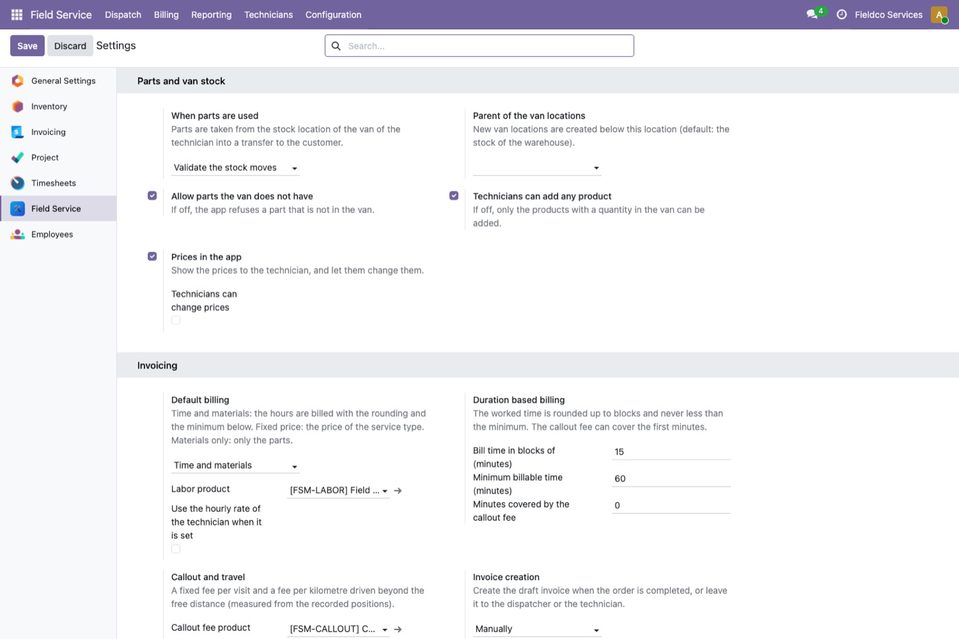

Setting	What it does
When parts are used	Validate the stock moves: when the order is completed a transfer from the van to the customer is created and validated. Create the transfer to validate later: the transfer waits for a storekeeper. Do not move stock: only billing.
Parent of the van locations	New van locations are created below this location.
Allow parts the van does not have / any product	Strict mode: the technician can only use what is in the van.
Prices in the app	Show the prices to the technician and, separately, let them change them.

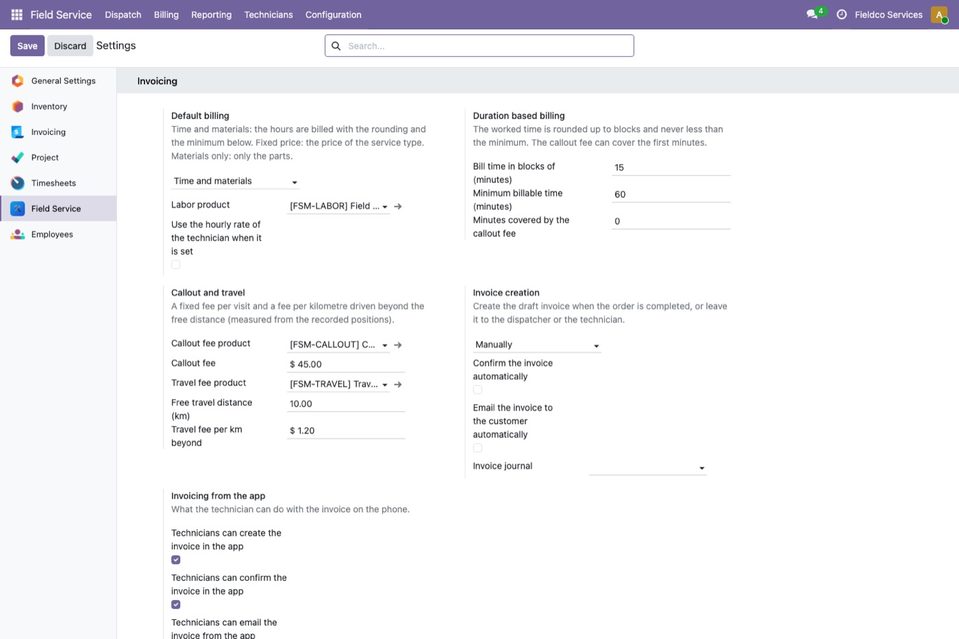

Setting	What it does
Default billing	Time and materials, Fixed price or Materials only; the labor product and whether the hourly rate of the technician is used (chapter 15).
Duration based billing	Bill time in blocks (default 15 min), a minimum billable time (default 60 min) and minutes covered by the callout fee.
Callout and travel	A fee per visit and a fee per kilometre beyond a free distance, measured from the recorded positions between On the way and Arrived.
Invoice creation	Manually, or automatically when the order is completed, optionally confirmed and emailed too.
Invoicing from the app	What the technician may do on the phone: create the draft invoice, confirm it, email it to the customer.

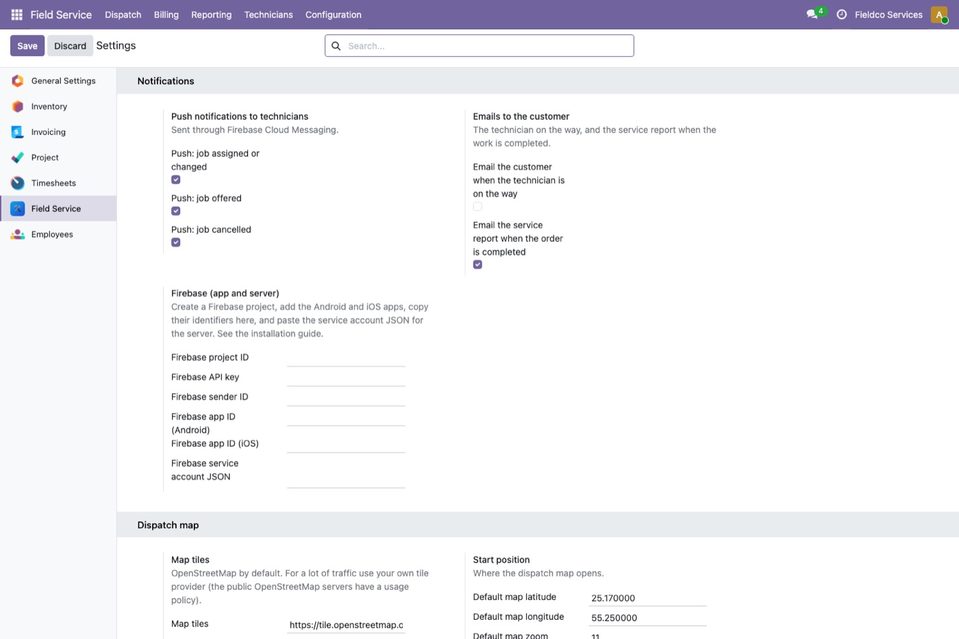

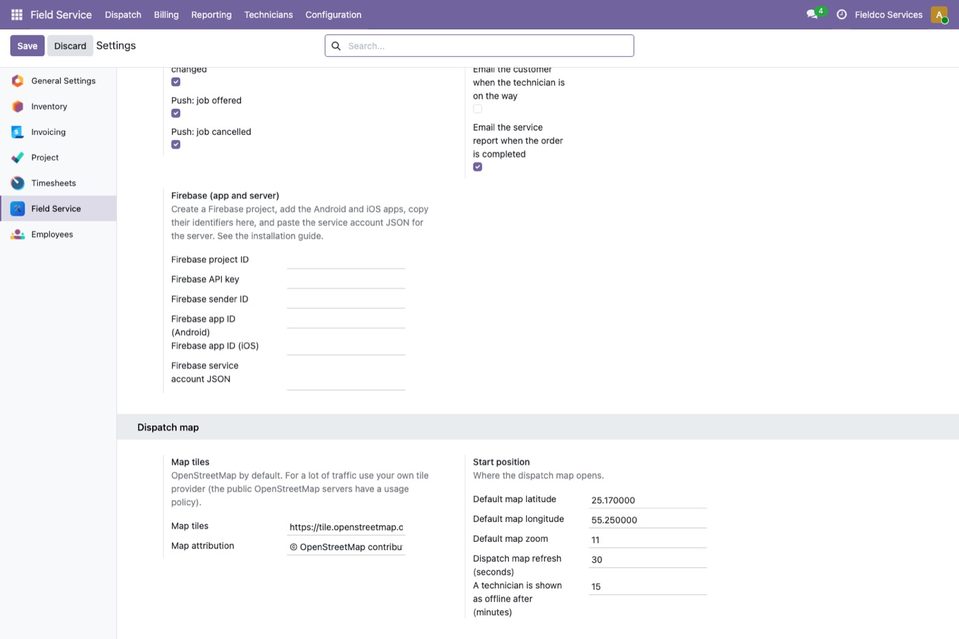

Setting	What it does
Push notifications	To the technician: job assigned or changed, job offered, job cancelled.
Emails to the customer	A message when the technician is on the way; the service report (PDF) when the work is completed.
Firebase	The identifiers of your Firebase project and the service account JSON (chapter 17).

Industry	Suggested settings
HVAC and refrigeration	Service types: Repair (time and materials) and Preventive maintenance (fixed price with included minutes). Van stock strict, photo after required, checklist required, geofence prompt.
Plumbing and emergency repair	Default dispatch nearby, offer radius 15-25 km, tracking during working hours, callout fee and travel fee, geofence auto-arrived, no required photos.
Electrical	Checklist with a safety item (required), hold reason Safety issue, signature required, photos before and after.
IT and network	No parts or few; time billing in blocks of 15 minutes, minimum 30; tracking on job only; signature required.
Appliance repair	Time and materials, van stock, Warranty visit service type with materials only; photos before and after.
Security and CCTV installation	Fixed price per installation, photos after required, checklist with serial numbers noted.
Facility services and cleaning	Fixed price, checklist required, signature of the site manager, tracking on job only.
Medical and lab equipment	Signature always required, checklist required, Manager can complete without proof only for managers.

Service types, skills, checklists and hold reasons

In plain words: These lists describe your business. They live in Field Service → Configuration and are copied into every order, so changing them never alters old orders.

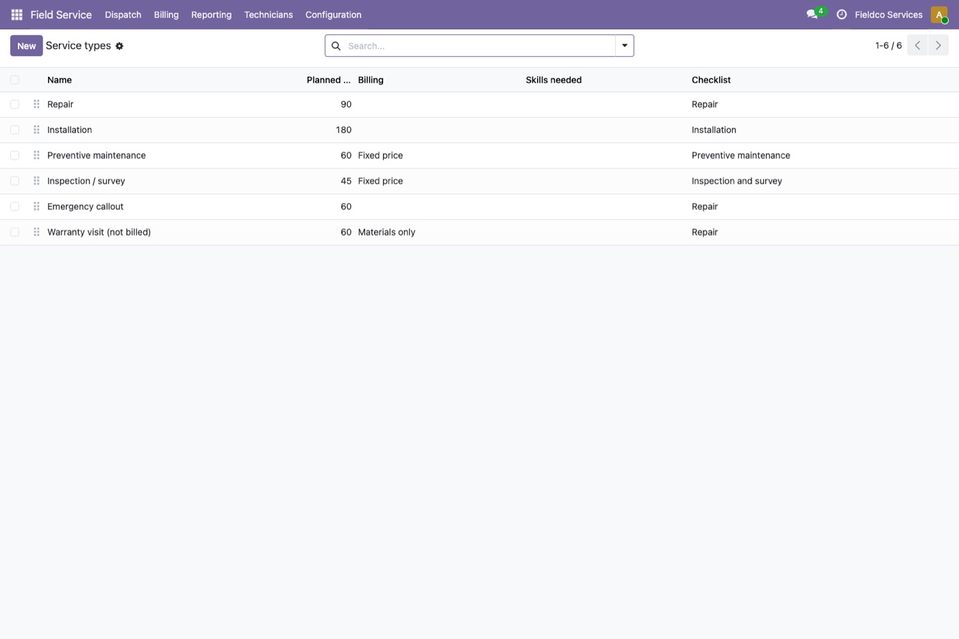

The service types that come with the module.

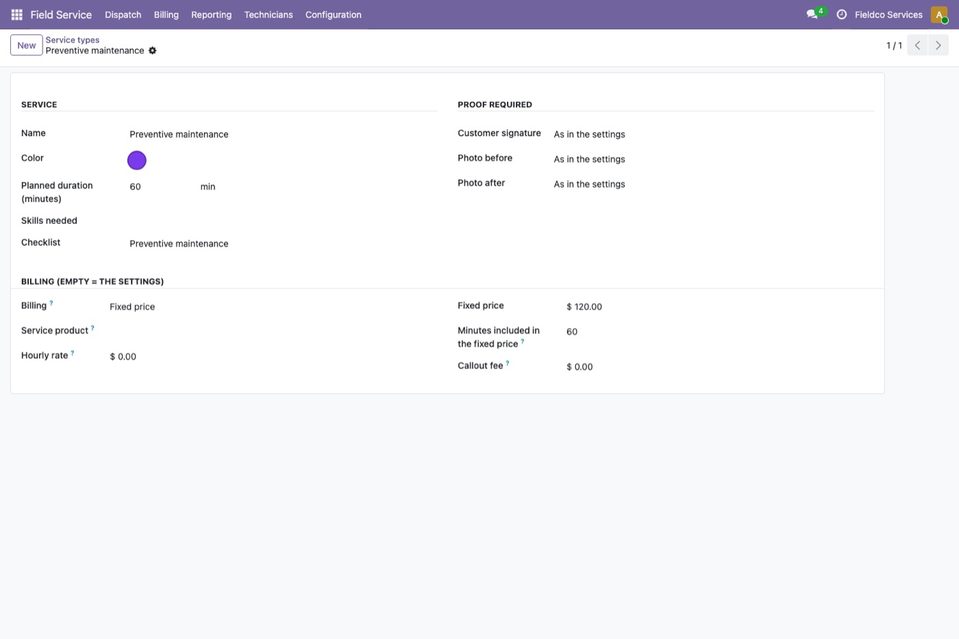

A service type: planned duration, skills, checklist, proof and billing.

List	What to know
Service types	Planned duration (used for the calendar), skills needed, a checklist, whether the signature and the photos are required (as in the settings, yes or no), billing mode, price, included minutes, hourly rate and callout fee. The app shows them with their color.
Skills	Attached to technicians and service types. With skills on the order only the qualified technicians are offered the job and ranked first in the assignment wizard.
Checklists	Templates of tasks; items marked required must be done before completion when the setting is on. The technician ticks them in the app and can add a note.

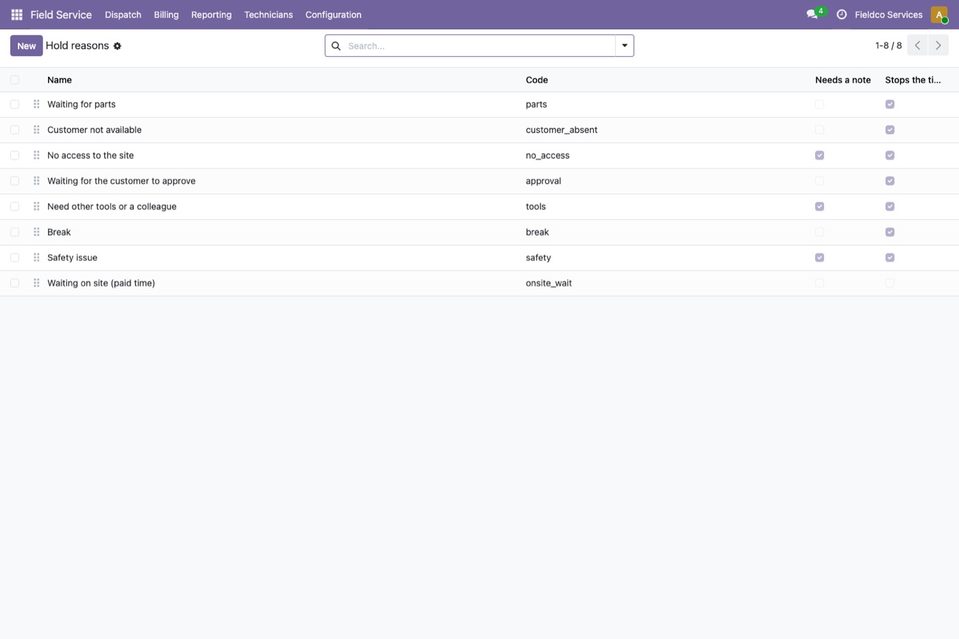

Hold reasons	Offered when a technician pauses a job (waiting for parts, customer not available, break...). Stops the timer decides whether the pause counts as worked time; Needs a note forces a comment.

Create and dispatch orders

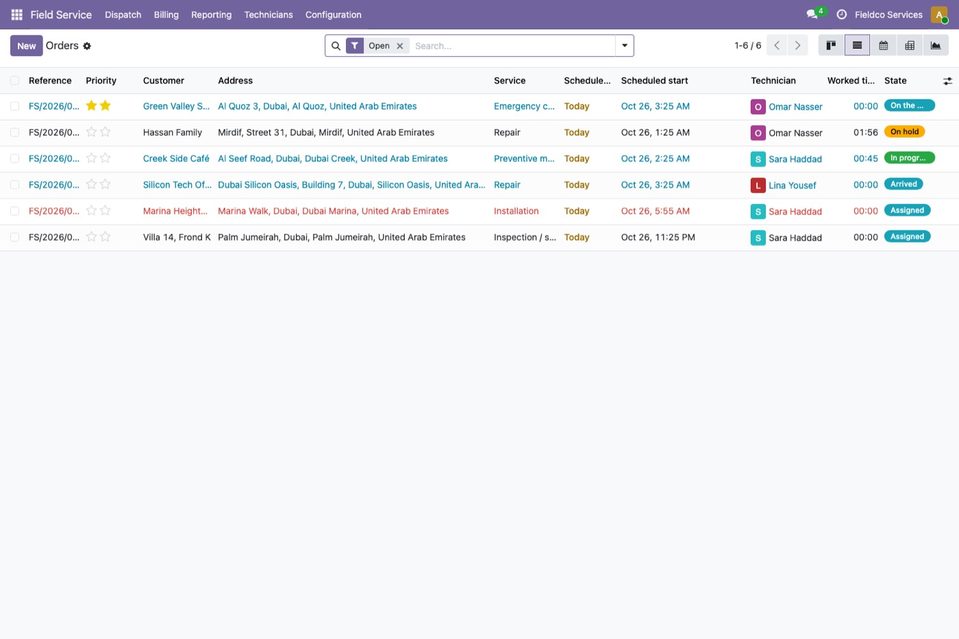

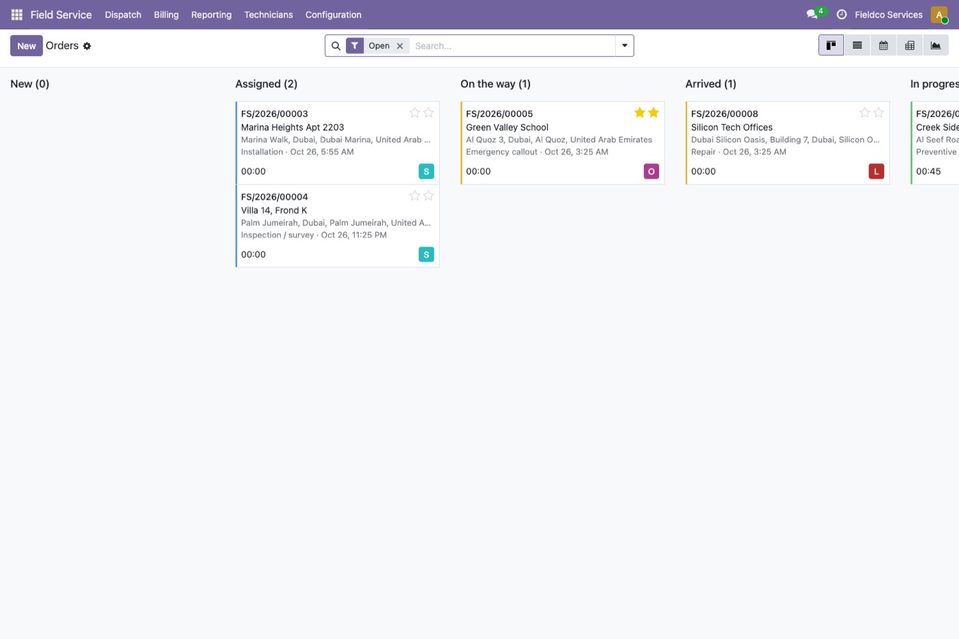

In plain words: Field Service → Dispatch → Orders shows the orders as a board by status, a list, a calendar by technician, and pivot and graph reports.

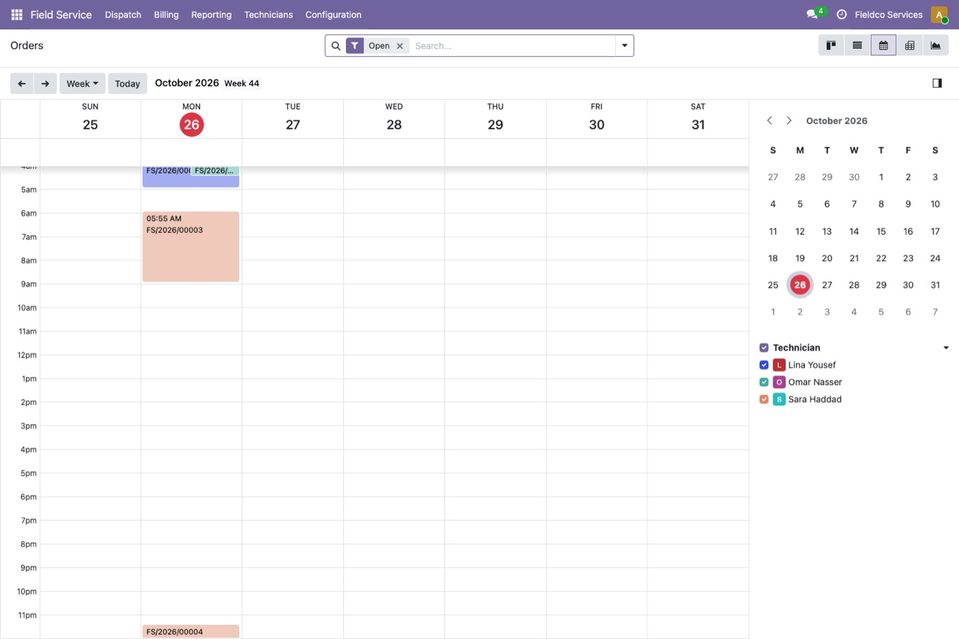

The calendar: jobs by technician and day.

Press New and choose the customer. The service address, phone and the coordinates are taken from the customer; press Find to geolocate an address with OpenStreetMap, or open the Map tab and click the exact place.
Choose the service type (it fills the duration, skills and checklist), the scheduled start, the priority, and write the description and the instructions for the technician (gate code, who to ask for, dangers).
Choose how to dispatch: pick a technician, or leave it open to the team or to nearby technicians.
Press Dispatch. A direct order becomes Assigned and the technician gets a push notification; an open order becomes Offered to the technicians that qualify.

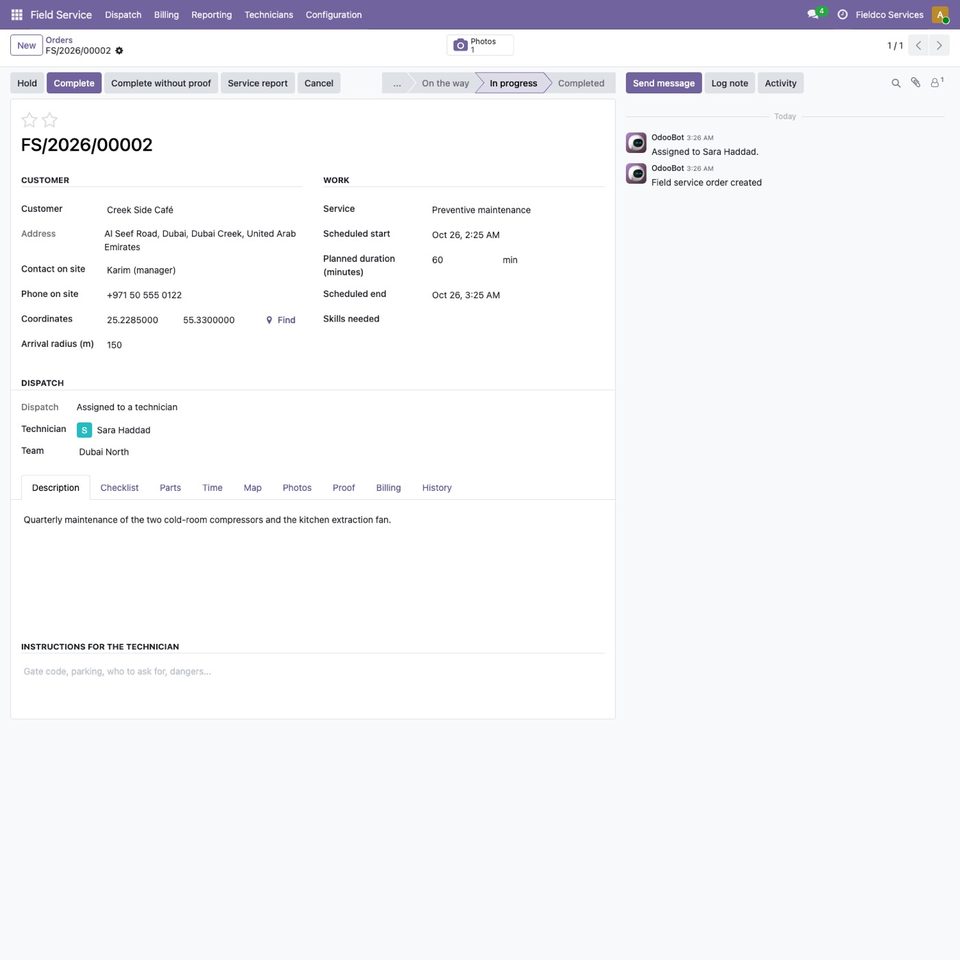

An order in progress: customer, work, dispatch and the tabs.

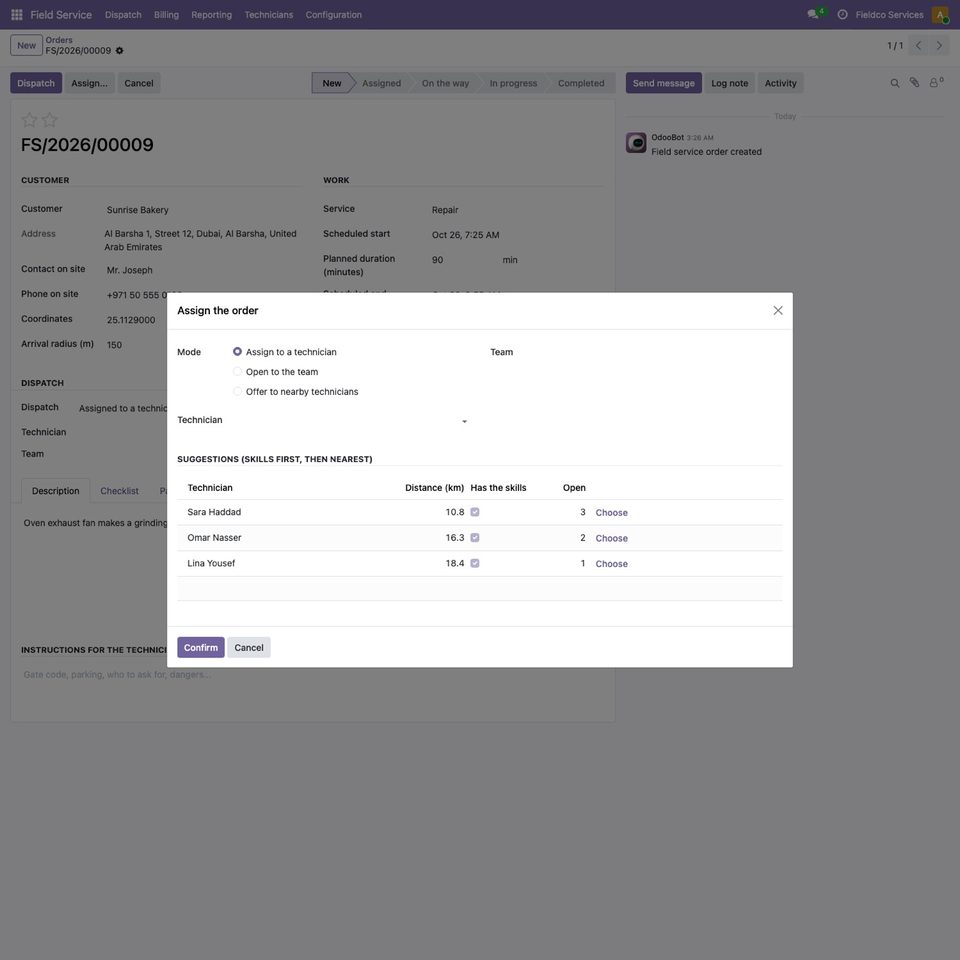

In plain words: The Assign... button opens the assignment wizard: it lists the technicians with the skills first, then by distance to the job, with their number of open orders, and lets you assign directly or turn the order into an offer.

You want to	Do this
Give the job to somebody else	Change the Technician field or use Assign...; the first technician is told the job was removed, the new one is notified.
Cancel	Press Cancel; the technician is told. Set to new brings it back.
See who did what and where	The History tab lists every step with the time of the phone, the GPS position, the distance from the job and the source (app, Odoo, arrival detection).
Duplicate a recurring job	Use the standard Odoo Duplicate action; recurring contracts are not included (chapter 20).

Offers: any technician can accept a job

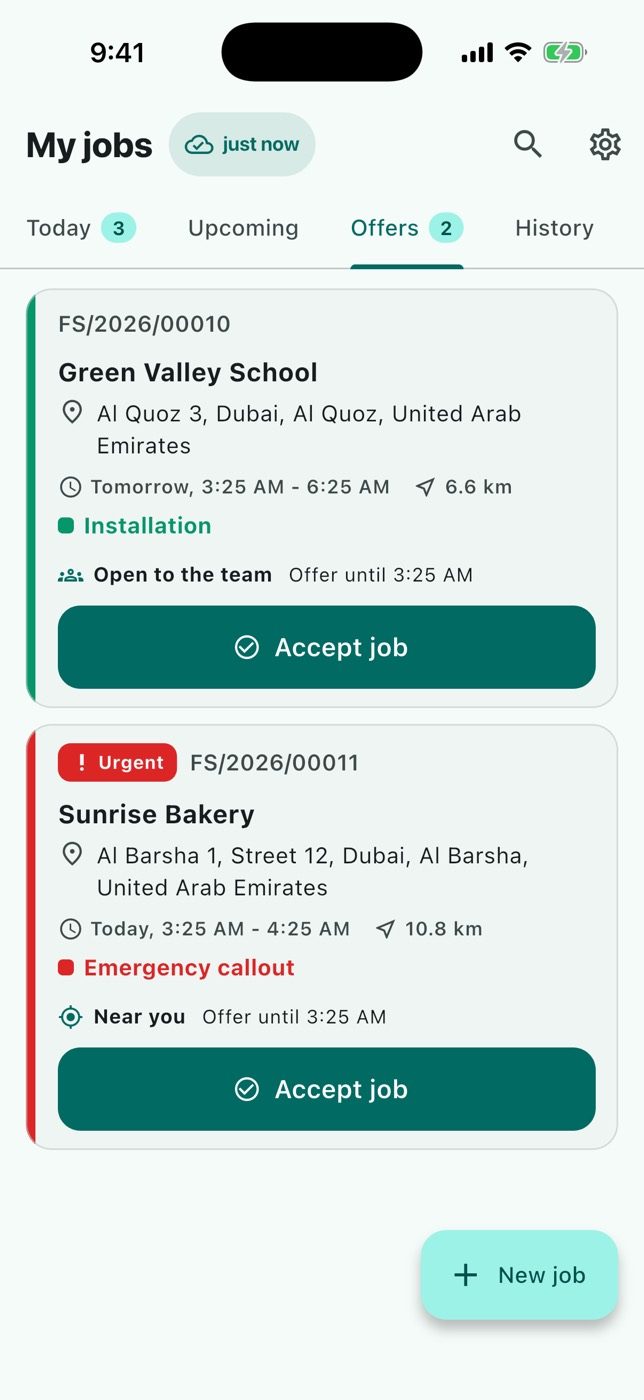

In plain words: When the dispatch is Open to the team or Offered to nearby technicians, the job is sent as an offer to the technicians that qualify (team, skills, and for nearby: within the radius of their last known position). They get a push notification and see it in the Offers list of the app with the distance. The first one to press Accept gets the job; the others are told it was taken, and a late answer is refused.

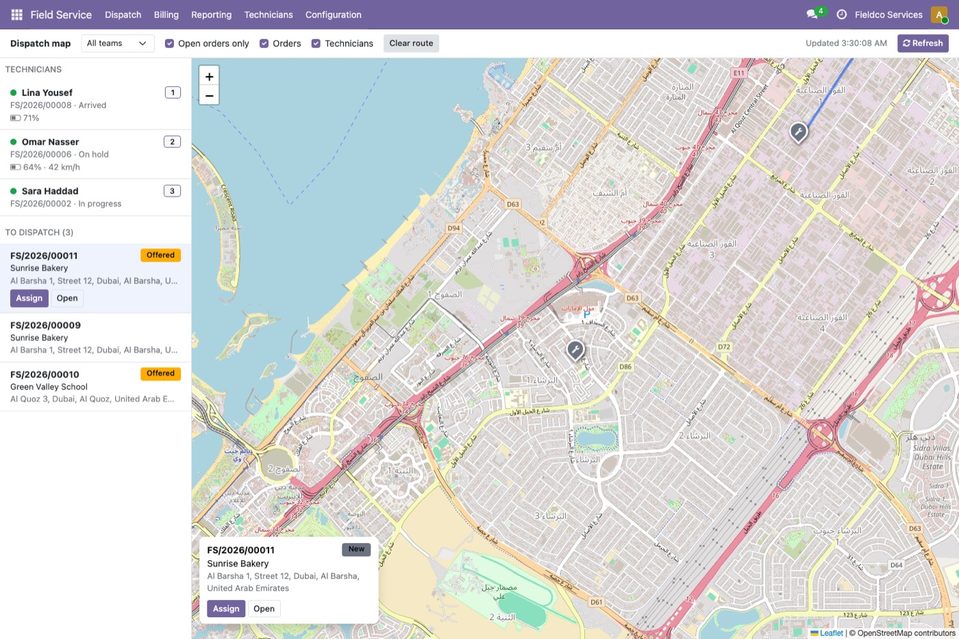

A job offered to three technicians appears with the badge Offered.

Step	What happens
Offer	Technicians busy with a job are skipped unless nobody else qualifies. Up to technicians offered at most are chosen, nearest first.
Expiry	After an offer expires after minutes, the offer is renewed with a larger radius (if widen is on).
Escalation	After the last round the job is not offered any more and the team leader (or the dispatchers) gets a to-do: Nobody accepted the job.
Decline	A technician can decline an offer (it disappears from their list) or an assigned job (it returns to the dispatcher).

The dispatch map and live location

In plain words: Field Service → Dispatch → Map shows technicians and orders on OpenStreetMap. Technicians are round badges with their initials and a status dot (green online, orange not seen for a while, grey offline), orders are pins colored by status with a red ring for urgent jobs. The map refreshes by itself every 30 seconds.

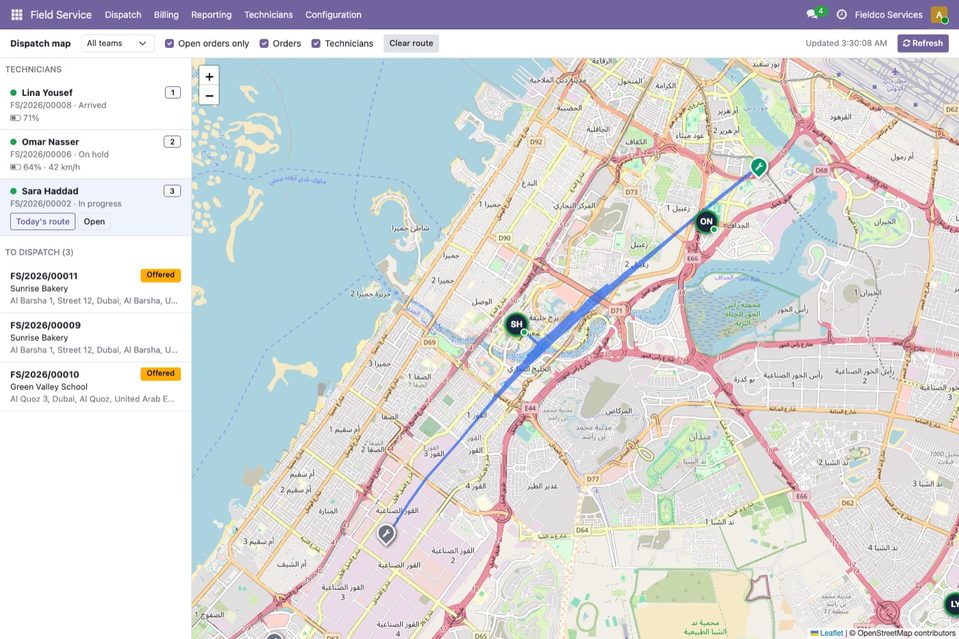

Select a technician to see the route of the day.

Do	How
Filter	By team, only open orders, show or hide orders and technicians.
Follow a technician	Click the name, press Today's route (the line is built from the location points of the last 8 hours).
Assign from the map	The list To dispatch shows the orders waiting; click one and press Assign.

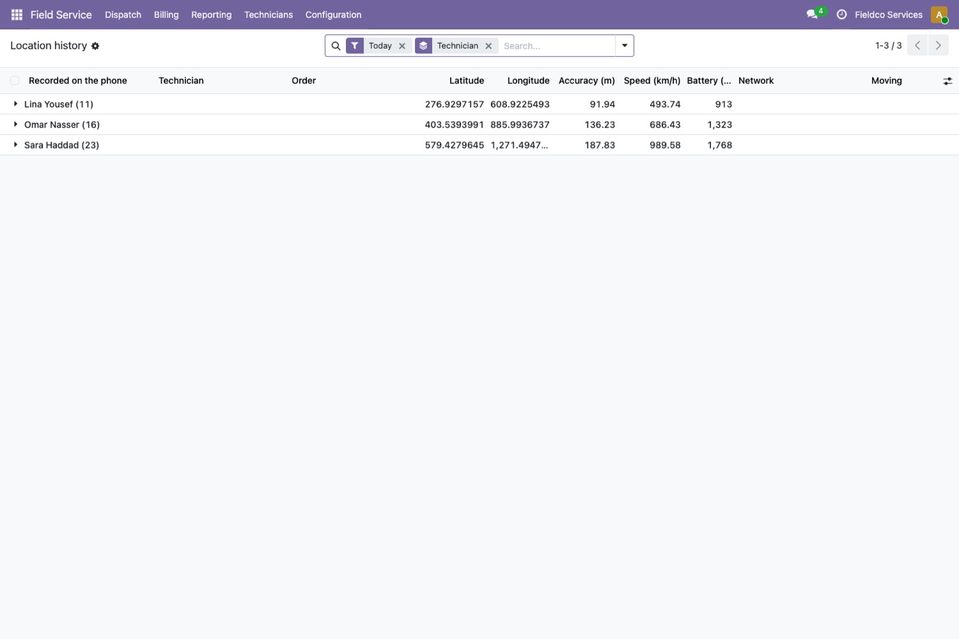

Location history	Reporting → Location history lists the points (time, accuracy, speed, battery, network).

In plain words: What the app sends: latitude, longitude, accuracy, speed, heading, altitude, battery level, charging, network type and the time of the phone. Points are stored on the phone when there is no network and sent in batches (up to 500) when it returns; duplicates are ignored. The server also uses each point to detect the arrival.

Tip: Map tiles come from the public OpenStreetMap servers, which have a fair-use policy. For many dispatchers, enter the URL of your own or a paid tile provider in Settings → Dispatch map.

What the technician does

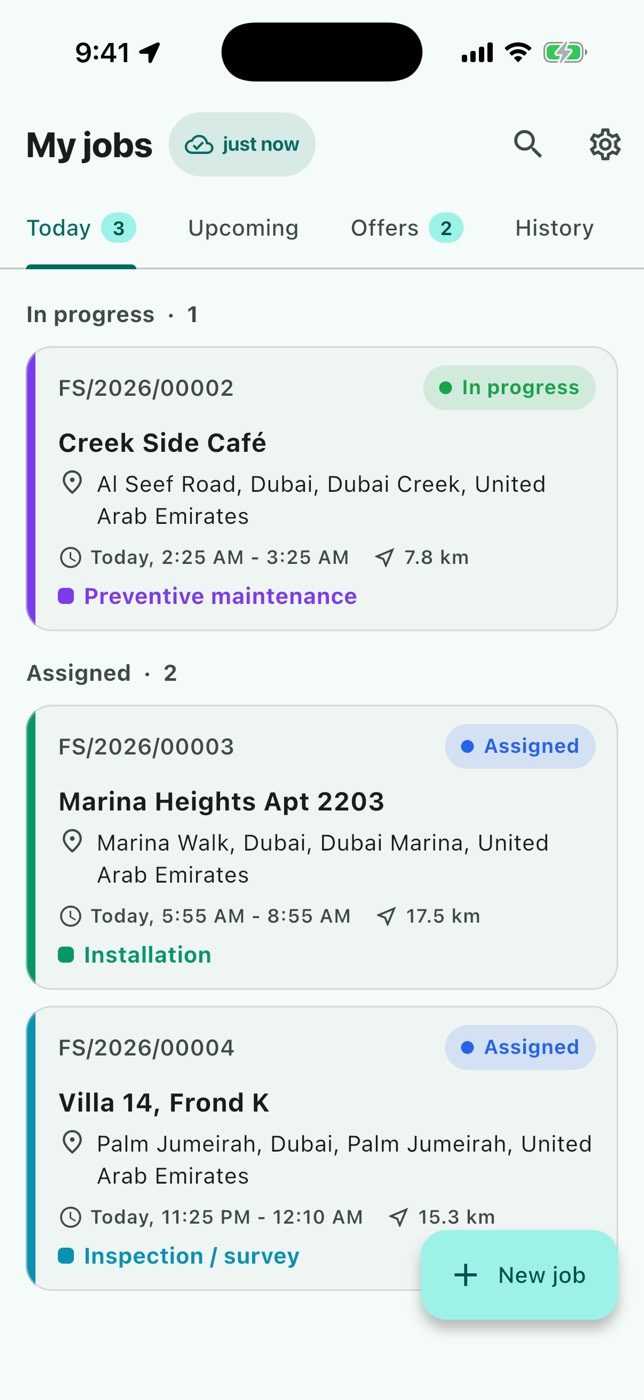

In plain words: The app is built around the job under way. On the Today list the technician sees the jobs, the next one first, with the customer, address, time, service and distance.

Step	In the app	In Odoo
Accept	Accept or decline an offer.	The order is assigned to the technician; the other technicians are told.
On my way	One tap, with the navigation button (opens the maps app).	State On the way; position and time are recorded; tracking starts; optional email to the customer.
Arrived	A prompt appears when the phone is inside the radius, or the technician taps Arrived.	State Arrived, with the distance from the customer address.
Start work	Starts the timer.	A work interval starts.
Hold / resume	Choose the reason (waiting for parts...), add a note.	The timer pauses; the pause is recorded with its reason.
Parts	Search or scan the barcode, set the quantity.	Lines on the order; the stock is moved on completion.

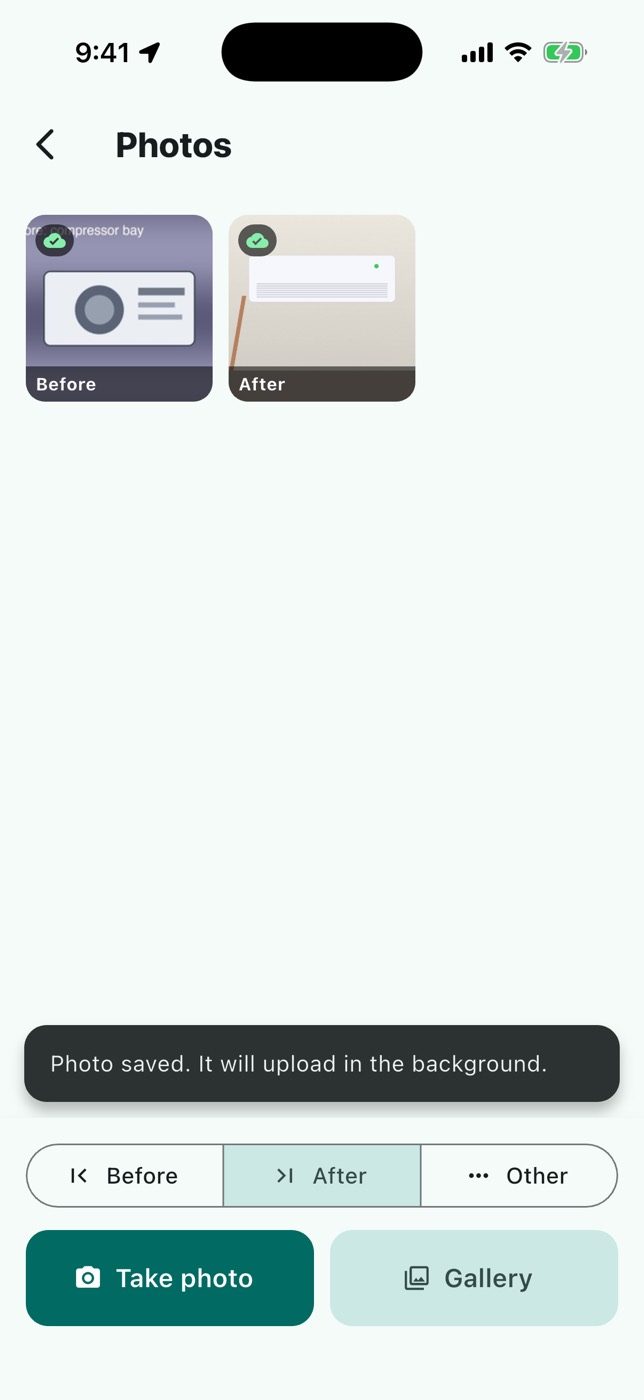

Photos	Before and after photos from the camera or gallery.	Photos on the order, compressed on the phone.
Checklist and notes	Tick the items, write what was done.	Saved on the order.

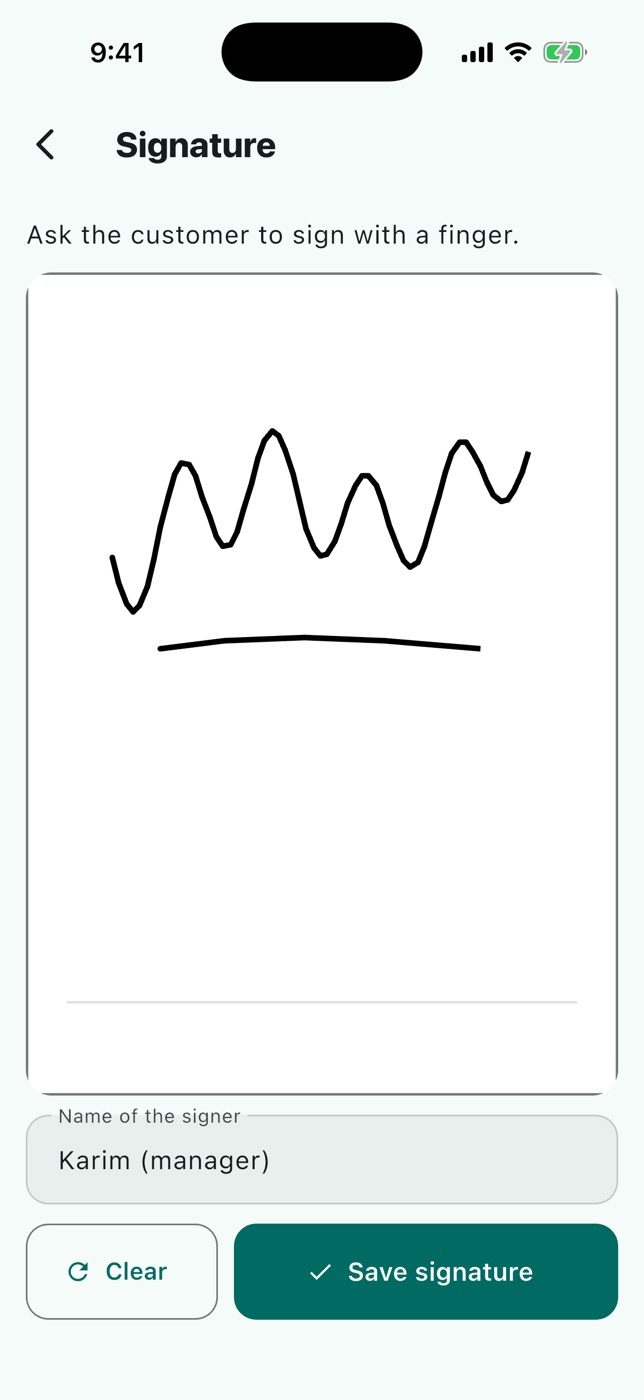

Signature	The customer signs on the screen.	Image, name, time and position.
Complete	Checks that everything required is there.	Timesheet, stock transfer, optional invoice and report email.

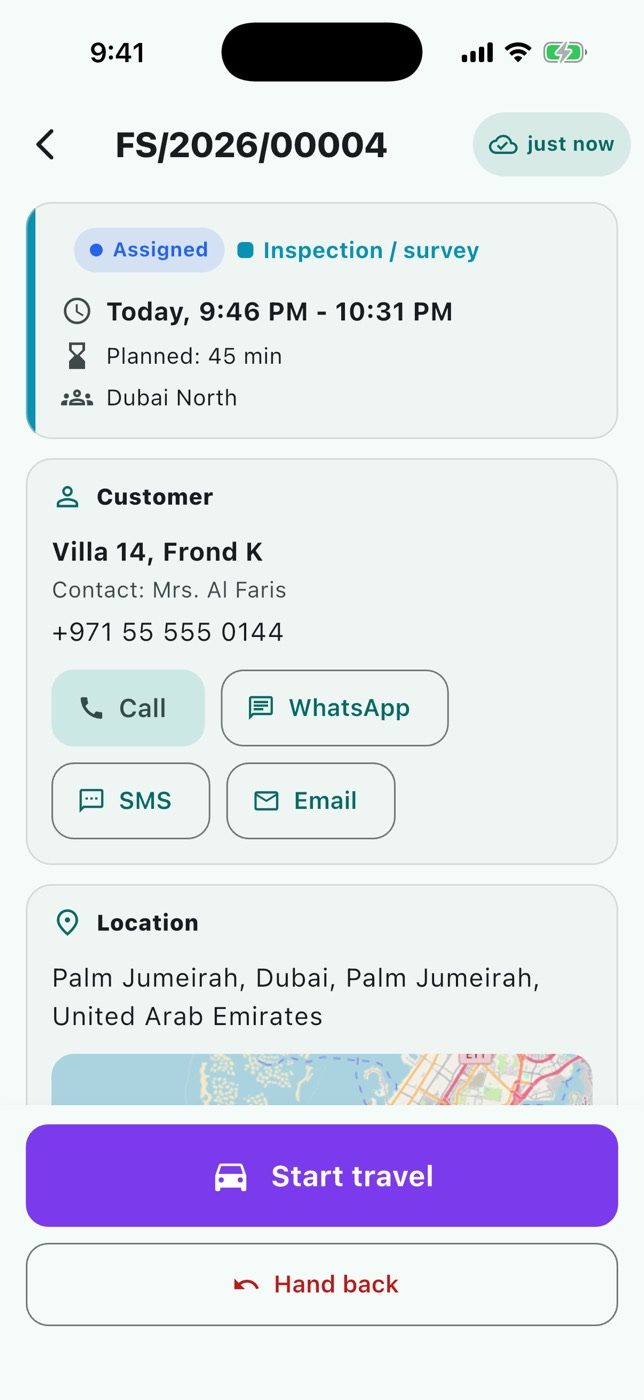

The job: customer, address, instructions, checklist.

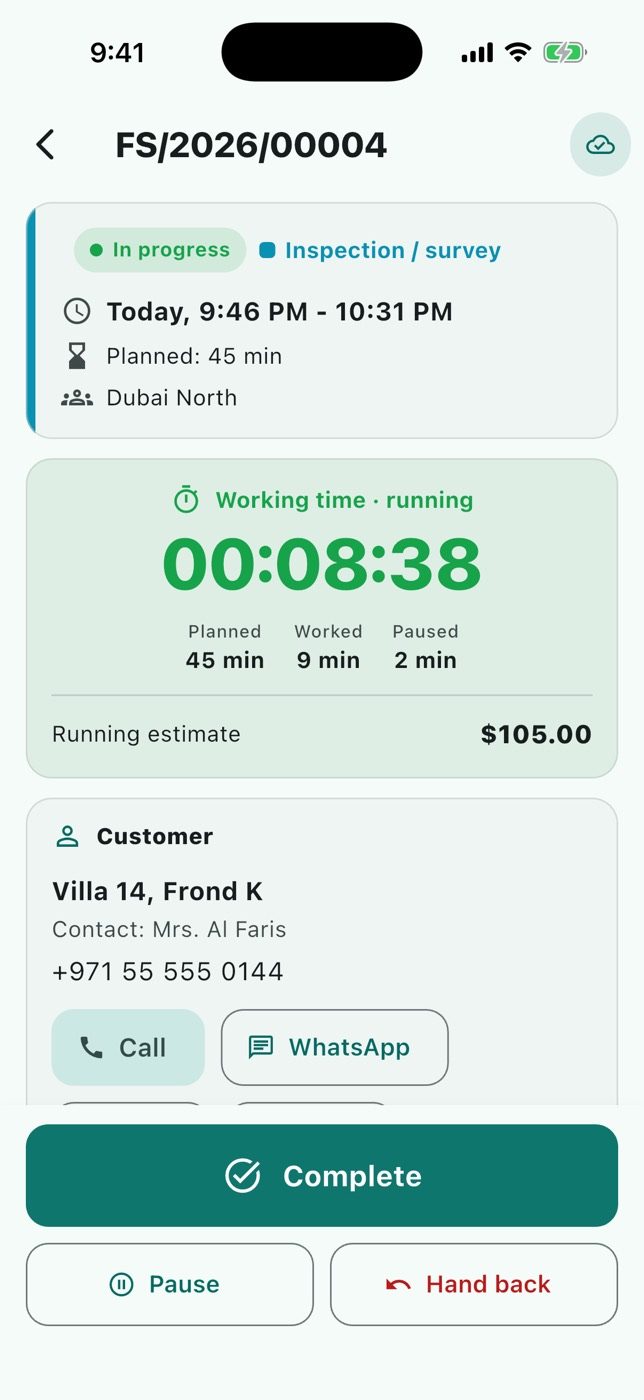

The active job: timer, one-tap status buttons, parts, photos.

Parts, barcode, photos and signature

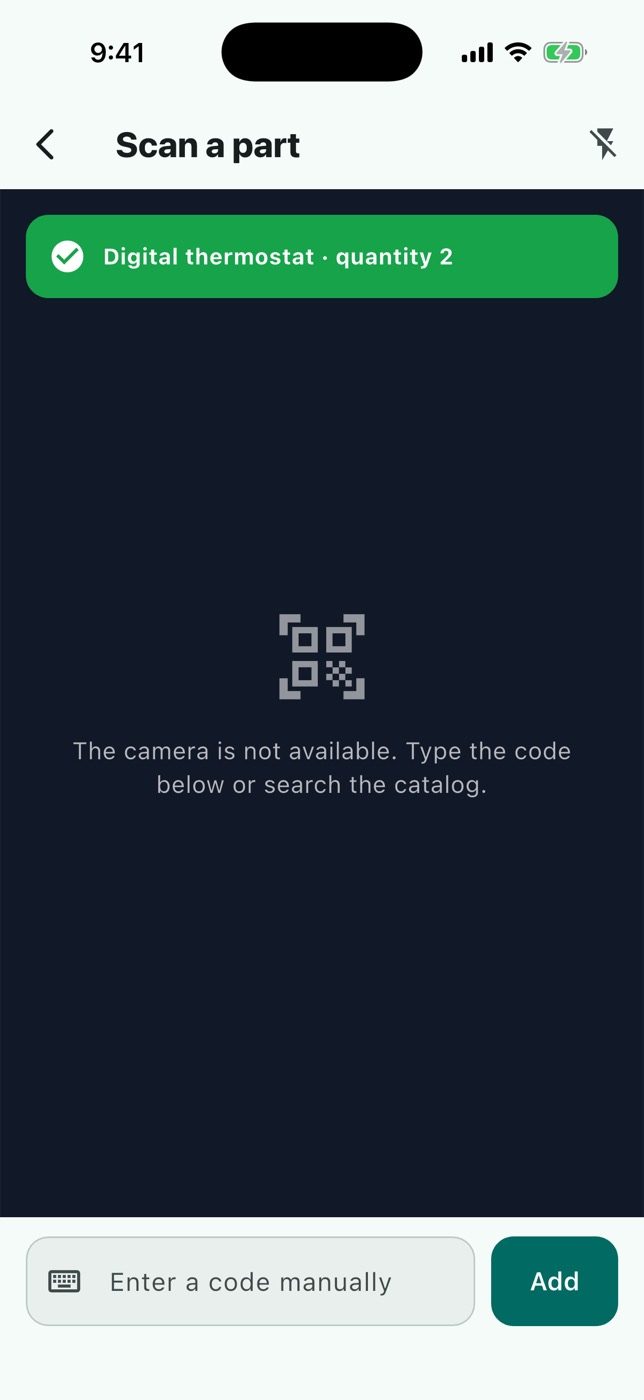

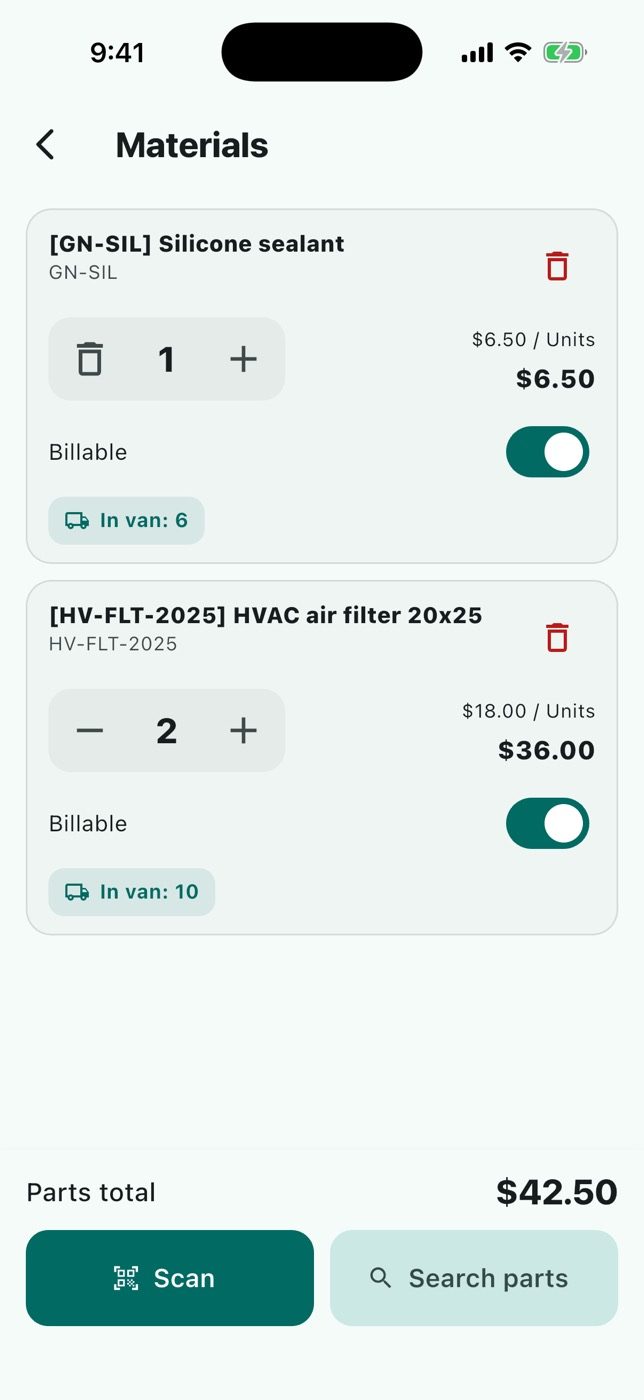

In plain words: The parts come from the van stock: the Inventory location of the technician. In the app, Add part opens a search by name, code or barcode, or the scanner (barcodes and QR codes). The catalog and the van quantities are stored on the phone, so searching and scanning work offline.

Rule	Detail
Stock	On completion a transfer Field service consumption from the van to the customer location is created and validated (or left to validate, see the settings). Late additions after completion are moved at once.
Out of stock	By default a technician may add a part the van does not have (the stock goes negative); turn it off in the settings for strict control.
Billable	Each line has Billable; a part that is not billable is still taken out of the stock.
Locked lines	Once the stock moved, the line cannot change or be deleted; add another line to correct.

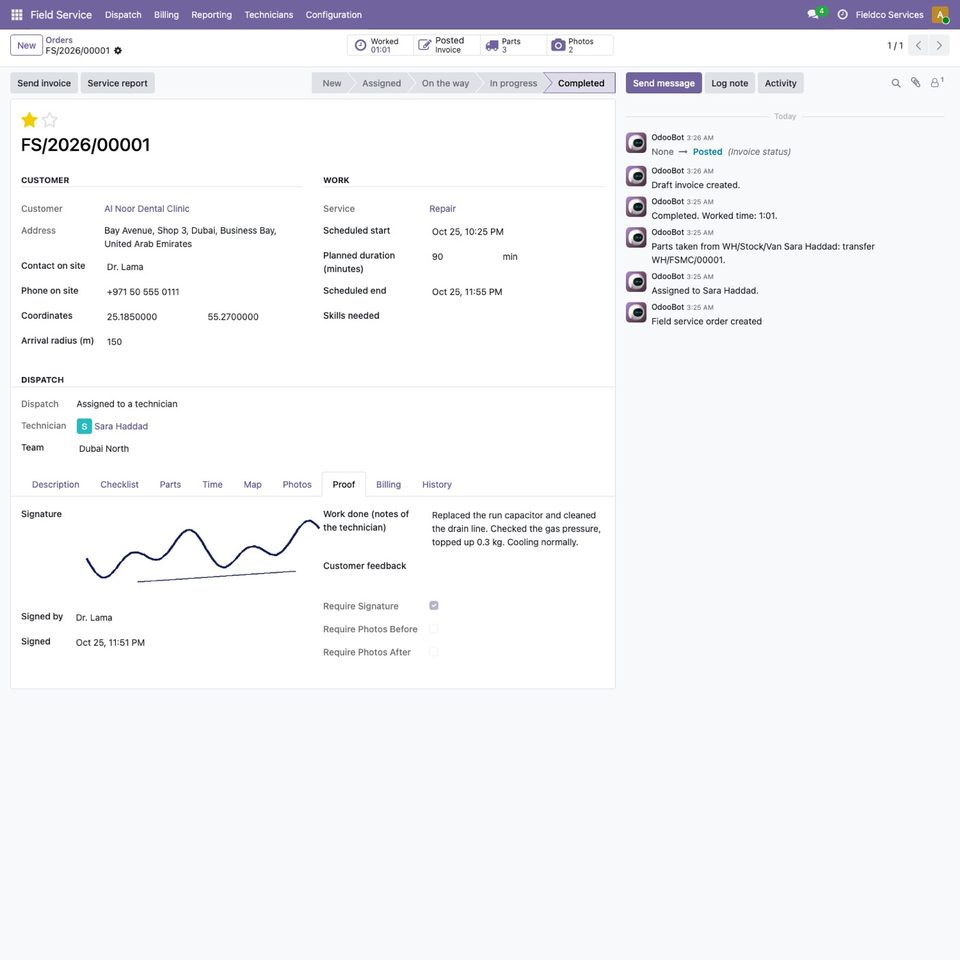

The signature, the notes and the proof rules.

Time, timesheets and invoices

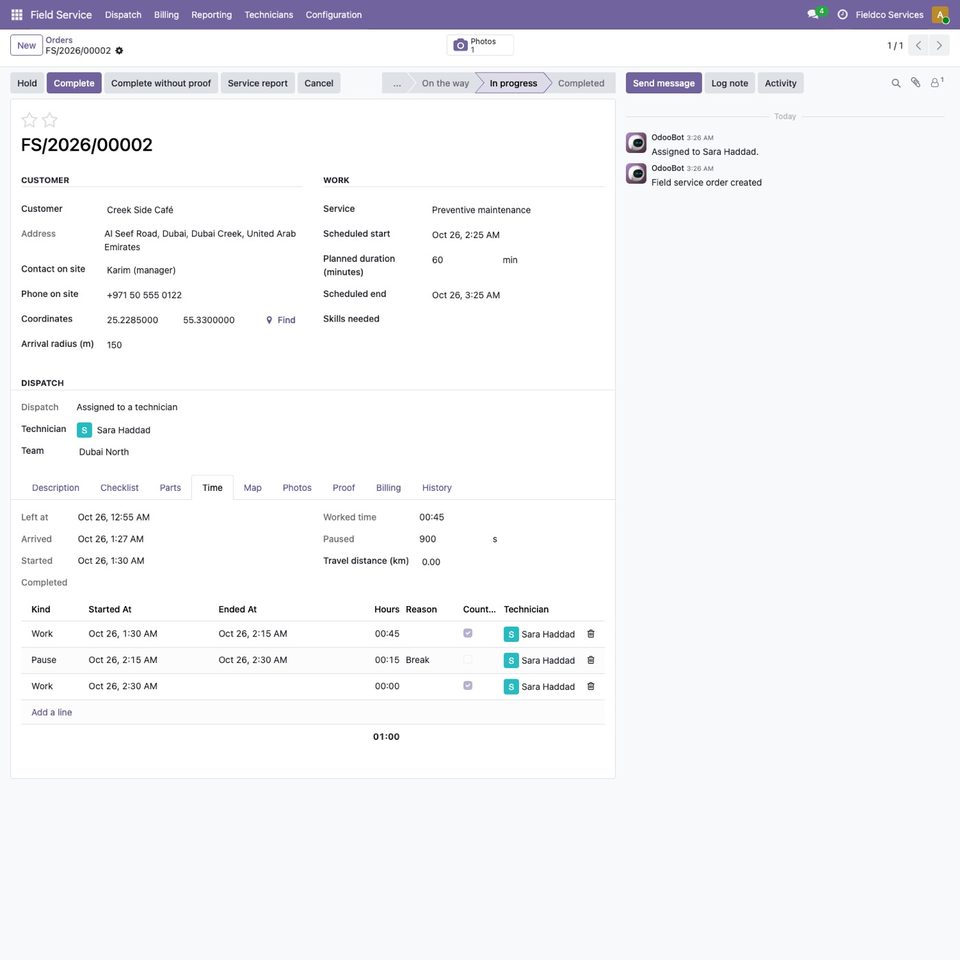

In plain words: The timer runs while the order is In progress. A pause stops it unless its reason says otherwise (for example Waiting on site (paid time)). The Time tab lists every interval.

In plain words: The invoice is a normal customer invoice (account.move) created from the order, as a draft. What it contains depends on the billing mode:

Mode	Labor line	Other lines
Time and materials	Worked time (minus the minutes covered by the callout fee), rounded up to the block (15 min) and not less than the minimum (60 min), at the hourly rate.	Billable parts; callout fee; travel beyond the free kilometres.
Fixed price	One line with the price of the order or service type; time beyond the included minutes is added as extra time at the hourly rate.	As above.
Materials only	None.	Billable parts (and fees if set).

In plain words: The hourly rate is the first that exists: the rate of the service type, the rate of the technician (if the setting is on), the price of the labor product. Example: 79 minutes of work, blocks of 15, minimum 60, rate 85 → 90 minutes → 127.50; two filters at 18 → 36; callout 45 → 208.50 before tax.

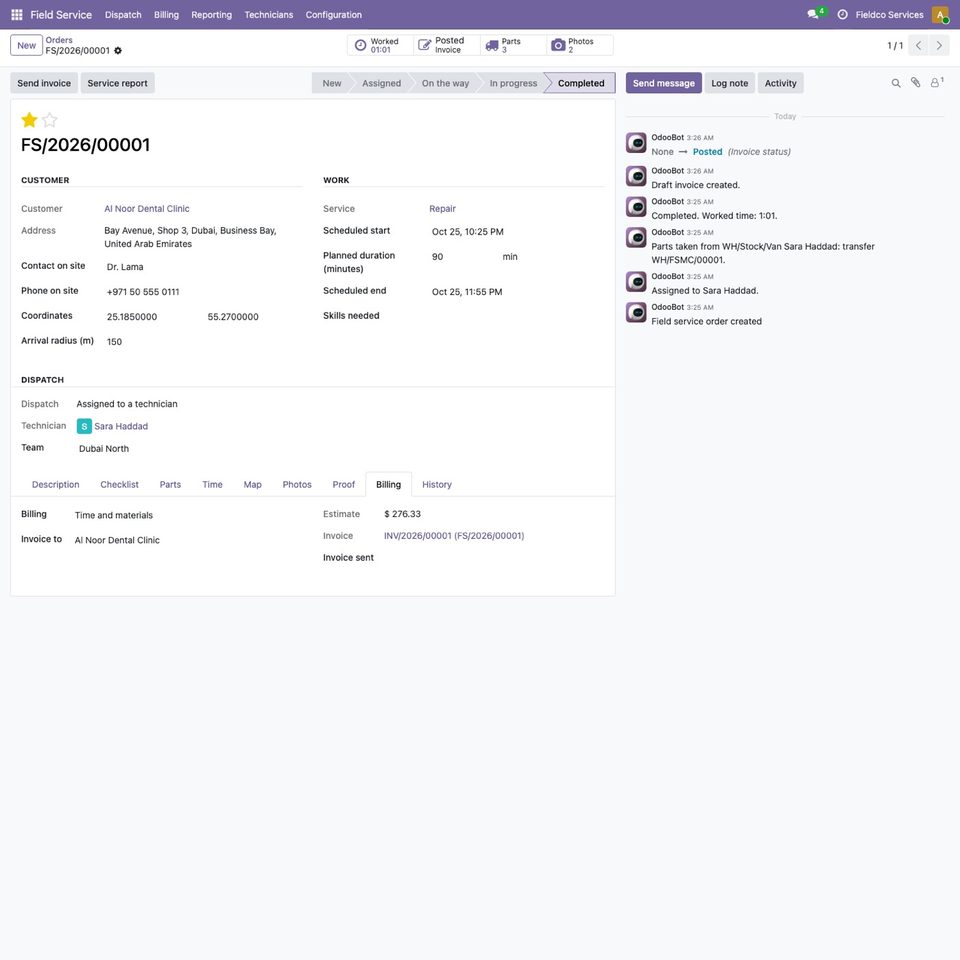

The Billing tab with the estimate and the invoice.

In Odoo press Create invoice on a completed order (or find it in Billing → To invoice), check the draft and confirm it as usual.
Send invoice confirms it if needed and emails it to the invoice contact of the customer with the PDF; you can also do it from the app.
Service report prints the PDF with the checklist, parts, photos and signature; it is emailed to the customer automatically if the setting is on.

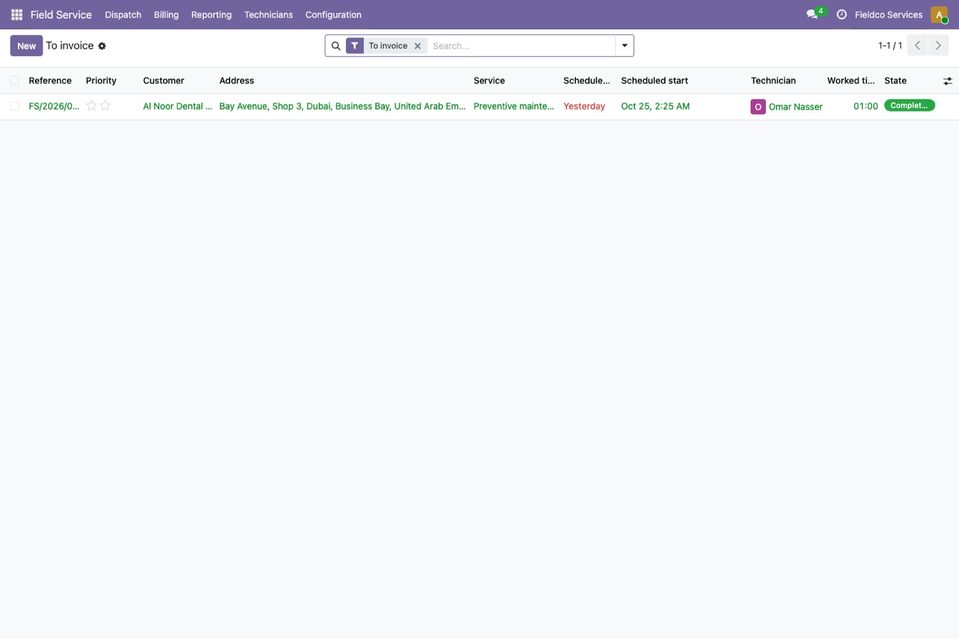

Completed orders waiting to be invoiced.

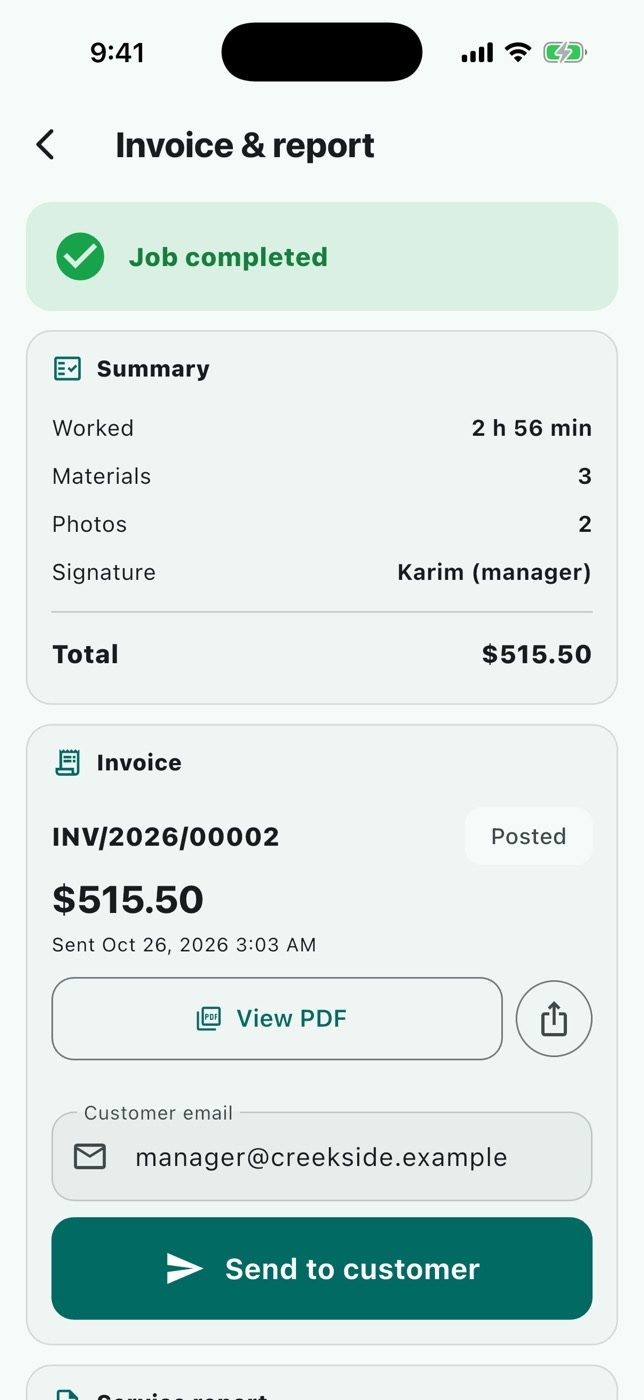

Create, confirm and send the invoice from the phone.

Important: The email goes through the outgoing mail server of Odoo. If it is not configured, or the server refuses the message, Odoo shows the error and does not mark the invoice as sent.

The mobile app in short

In plain words: The app is written in Flutter: one code base for Android and iOS, in English and Arabic (right to left). It keeps working without a network.

Area	What it does
Sign in	Server address, Odoo login and password. The token is kept in the secure storage of the phone.
Jobs	Today and upcoming jobs, offers, completed jobs; details, navigation, call the customer.
Active job	Timer, status buttons, hold reasons, parts, scanner, photos, signature, notes, checklist, invoice.
Map	The jobs and the position of the technician on OpenStreetMap.
Tracking	Background location, buffered offline, with battery friendly sampling; the privacy text and the permission steps.
Sync	Outbox of actions, retries, conflict messages and a screen of problems to resolve.

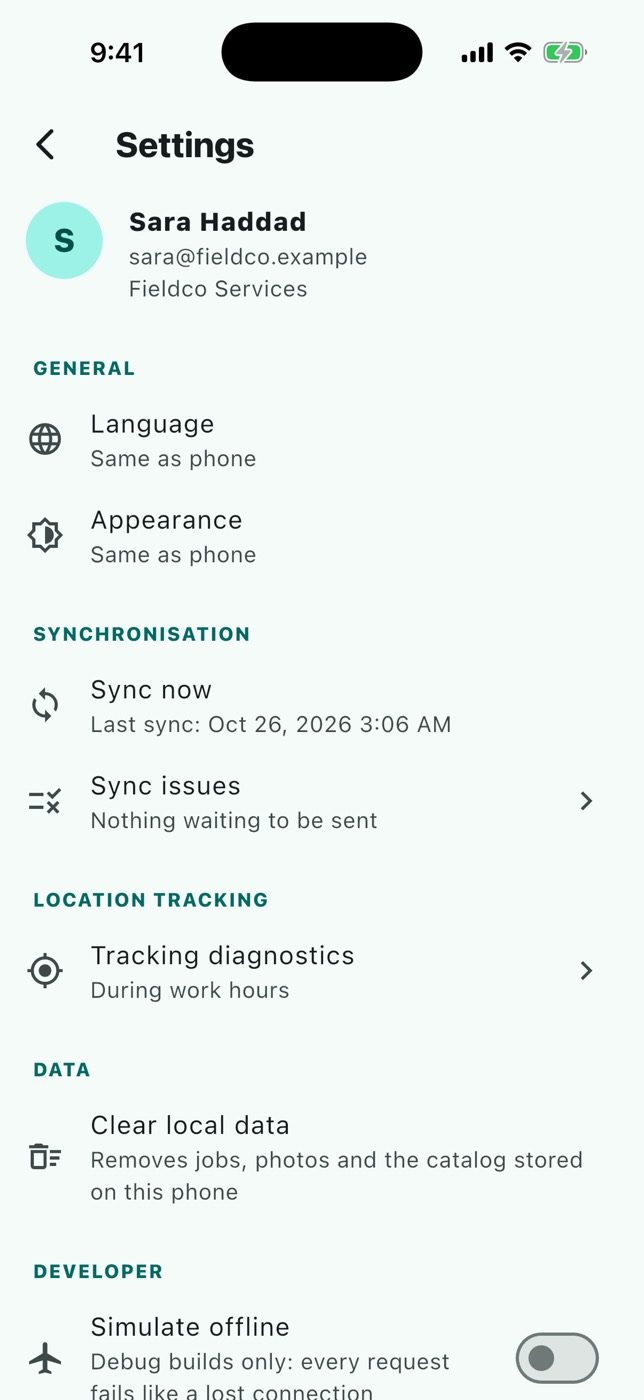

Settings	Language, appearance, sync now, sync issues, tracking diagnostics, clear local data, sign out (and, in debug builds only, an offline simulation switch).

In plain words: Offline first. Everything the technician does is written to the local database and to an outbox; the screens read only the local database, so the app is as fast and usable offline as online. When a network is available, the app sends the outbox in order, each action with a unique ID (a retry can never apply it twice), then downloads what changed. The rules: the server decides assignment and cancellation; the phone decides what happened in the field (times, parts, photos, signature, notes, checklist); a pending action of the phone is never overwritten by older server data.

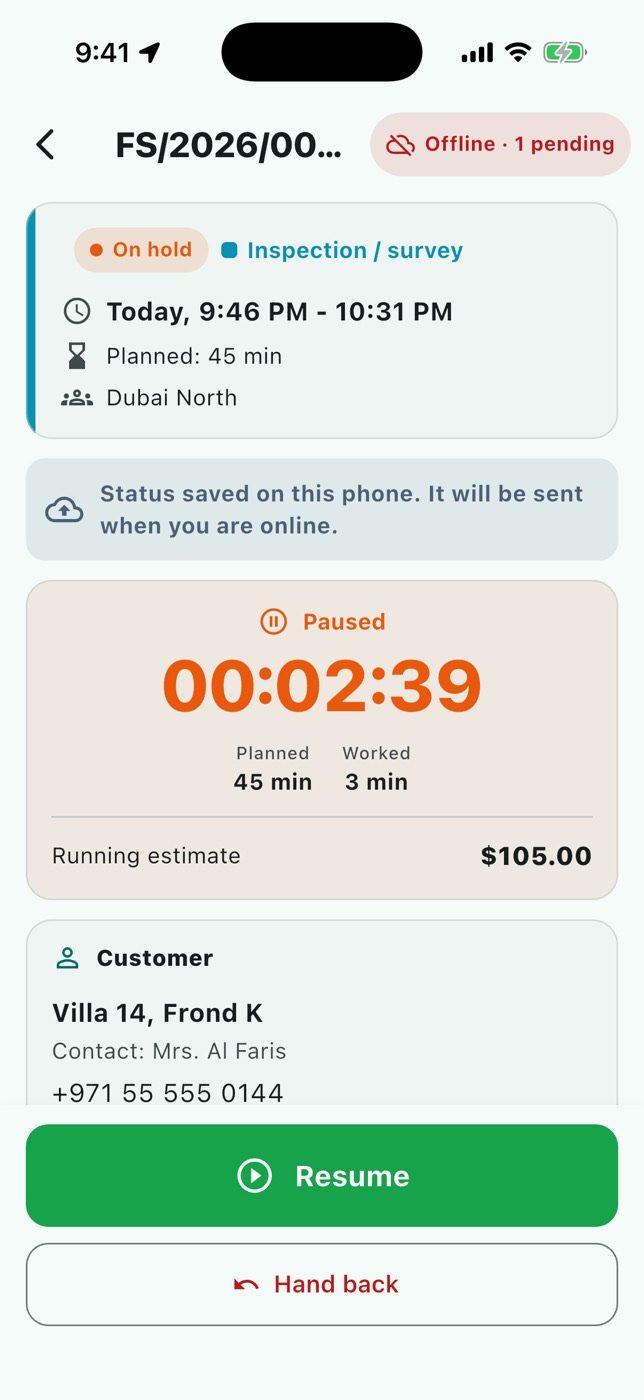

Working offline: actions wait in the outbox.

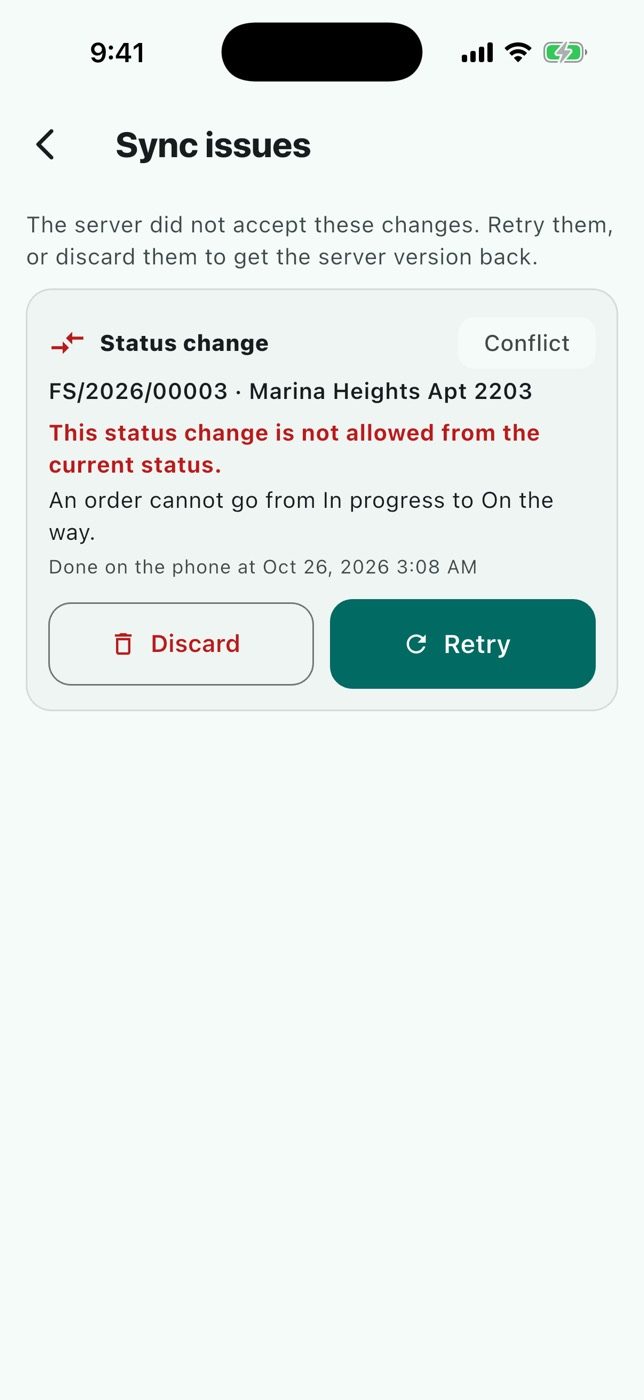

Actions that the server refused or that conflict are listed with the reason.

Situation	Result
The dispatcher cancelled the job while the technician was offline	The actions come back as conflict: order closed and are listed in the sync issues; the job shows Cancelled.
Two technicians accept the same offer	The first request wins; the other gets already taken.
A technician starts a job that was reassigned	Not assigned: refused and listed.
The phone clock is wrong	The time of the phone is kept, but never earlier than the previous step of the same order.
No stock in the van (strict mode)	The part is refused with insufficient stock.

Build and publish the app

In plain words: Skip this chapter if you only want to test: flutter run works on a simulator or a connected phone.

Install Flutter (3.41 or newer), Android Studio, and on a Mac Xcode with CocoaPods; run flutter doctor and fix what it reports.
Unzip flutter-app-source.zip in a folder without spaces.
Run the setup script with your Odoo address and your own package name: dart run tools/setup.dart --url https://odoo.example.com --package com.yourcompany.fieldservice. It writes the address and the identifiers into the project; add --name "Your Company Service", --color "#0f766e" and --icon your-icon-1024.png to set the app name, the brand color and the icon (the script is safe to run again).
Run flutter pub get, then flutter run to try it, signing in with a technician of your Odoo.

cd flutter-app
dart run tools/setup.dart --url https://odoo.example.com --package com.yourcompany.fieldservice
flutter pub get
flutter run --dart-define=SITE_URL=https://odoo.example.com

Target	Command	Then
Android (Google Play)	`flutter build appbundle --release`	Upload the `.aab` in the Play Console. Create the signing key once and keep it safe.
Android (internal, no store)	`flutter build apk --release`	Send the `.apk` to your technicians (allow installation from this source).
iPhone (App Store, TestFlight)	`flutter build ipa --release`	Upload with Xcode or Transporter; create the App ID with the capabilities Push Notifications and Background Modes (location updates).

Important: Both stores ask to justify the background location: use the sentence The app records the position of the technician during working hours and while a job is under way to dispatch jobs, navigate and prove arrival, and publish a privacy policy. The app shows its own explanation before it asks the permission.

In plain words: Push notifications (Firebase): 1) create a Firebase project; 2) add an Android app and an iOS app with your package names; 3) in Project settings → Cloud Messaging upload your APNs key for iOS; 4) in Odoo Settings → Notifications enter the project ID, the API key and the app IDs, and paste the content of a service account JSON (Project settings → Service accounts → Generate new private key). The app reads the identifiers from your server when it signs in, so the source code contains no key.

Day to day for the dispatcher

Task	Where
Morning check	Dispatch → To dispatch (new orders) and the map (who is online).
Overdue	Filter Late in the orders (not started after the scheduled time).
Offers nobody took	Filter Offered, nobody took it, or the to-do in your Activities.
Complete or fix an order	Open it; managers can Complete without proof when a signature could not be collected.
Invoices	Billing → To invoice, then Invoices.
Parts consumed	Billing → Parts used lists the transfers from the vans.
Message a technician	Technicians → Send a notification sends a push message to chosen technicians.

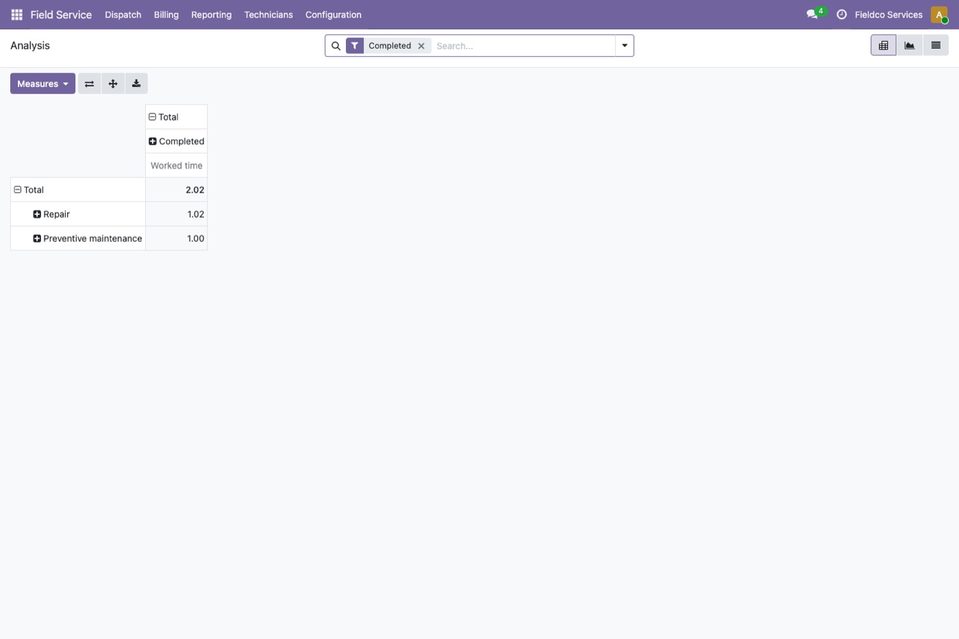

Analysis	Reporting → Analysis: orders and worked hours by service, technician and status.

The list of orders with the filters Late, To invoice, Offered...

Security and privacy

Topic	How it is handled
Access	The app signs in with the Odoo login; internal users with the group Technician only. Record rules: a technician sees only their own orders and the orders offered to them. Accounts with two-factor authentication cannot sign in to the app.
Tokens	A random token per device, only its hash is stored in Odoo, devices unused for 180 days are forgotten. Devices lists them; a technician can be signed out everywhere. Odoo's own protection slows down repeated wrong passwords (a cooldown after five failures).
Orders are protected	Every action of the app is checked on the server: the order must be assigned to the user, the state machine must allow the move, and the proof rules apply.
History cannot be changed	The events (state, time, GPS) cannot be edited or deleted, not even by a manager.
Location	Collected only while the setting says so, with a privacy text and the system permission; points older than the retention (30 days by default) are deleted every day. Customers do not see the technician's position.
Secrets	The Firebase service account is readable only by Odoo administrators. The app contains only public identifiers.

Tip: Tell your technicians what is collected and when. In some countries employee location tracking requires a written notice or consent: use the privacy text of the settings and your own policy.

Good to know

Limit	Detail
Recurring maintenance contracts	Not included. Duplicate orders or use Odoo scheduled actions.
Route optimisation	Not included. The map and the assignment wizard help to choose by distance; navigation opens the maps app of the phone.
Lot and serial numbers	The app adds parts by quantity; serial numbers can be noted in the checklist or the notes.
Customer portal	Not included. The customer receives emails (on the way, service report, invoice).
Background location on phones	Android and iOS may stop apps to save the battery. Ask technicians to allow always location and disable battery optimisation for the app; the buffer keeps the points until the phone reconnects.
Odoo version	Built and tested on Odoo 19.0. Other versions need an adaptation of the views and some methods.
Maps	Public OpenStreetMap tiles are for moderate use; configure another tile server for heavy use.

For developers

In plain words: Skip this chapter if you only use the product. The complete contract of the app API is in documentation/API.md.

# is the server reachable?
curl https://odoo.example.com/api/fsm/v1/ping
# {"ok": true, "api_version": 1, "server_time": "2026-10-26T08:00:00Z"}

# sign in (returns a token and the configuration)
curl -X POST https://odoo.example.com/api/fsm/v1/auth/login -H 'Content-Type: application/json' \
  -d '{"login": "sara@example.com", "password": "...", "device": {"id": "abc", "platform": "android"}}'

# send buffered location points
curl -X POST https://odoo.example.com/api/fsm/v1/tracking/batch -H "Authorization: Bearer $TOKEN" -H 'Content-Type: application/json' \
  -d '{"points": [{"uuid": "1", "lat": 25.2, "lng": 55.27, "speed": 8.3, "heading": 90, "battery": 80, "network": "cellular", "recorded_at": "2026-10-26T08:00:00Z"}]}'

# push the queued actions and pull the changes
curl -X POST https://odoo.example.com/api/fsm/v1/sync -H "Authorization: Bearer $TOKEN" -H 'Content-Type: application/json' \
  -d '{"cursor": null, "ops": [{"uuid": "9d1c...", "type": "transition", "order_id": 12, "device_time": "2026-10-26T08:01:00Z", "payload": {"to": "en_route", "lat": 25.2, "lng": 55.27}}]}'

Area	Endpoints under /api/fsm/v1
Session	GET /ping, /config, /auth/me; POST /auth/login, /auth/logout, /auth/push-token
Sync	POST /sync (operations: transition, claim, decline, material_set, photo_add, signature_set, notes_set, checklist_set, order_create, invoice)
Tracking	POST /tracking/batch (also /api/fsm/tracking/batch)
Data	GET /jobs/available, /orders/<id>, /catalog/products, /catalog/lookup?barcode=, /van-stock, /customers
Files	GET /photos/<id>, /orders/<id>/signature, /orders/<id>/invoice.pdf, /orders/<id>/report.pdf

In plain words: Calls send Authorization: Bearer <token> and optionally Accept-Language. Every operation of /sync has a unique uuid and is answered applied, duplicate, rejected or conflict with a code. The module has 130+ automated tests (--test-tags /taqnix_fsm) and the app has unit tests (flutter test).

Troubleshooting

Problem	What to do
The app cannot connect	Open `https://your-odoo/api/fsm/v1/ping` on the phone: it must answer `{"ok": true}`. Check https, the certificate, the address without a trailing slash and that the module is installed on that database (the right one if you have several: add `--db-filter` or the dbfilter setting).
Sign-in says the account is not a technician	Add the user in Technicians (it gets the group automatically).
The technician sees no jobs	The order must be Assigned to that user (not New). Open the order and press Dispatch.
No offers appear	Check the team and the skills, the radius and that the technician has a recent location (tracking on) for nearby offers.
The map is empty or white	The browser must reach the tile server; set the tile URL in the settings.
No timesheet	The technician needs an employee and the project of the settings; see the to-do created for the dispatcher.
Parts are not moved	Check the setting When parts are used and that the products are storable; look at Billing → Parts used.
The invoice is not emailed	Set up the outgoing mail server in Odoo and check the customer email.
No push notifications	Check the Firebase identifiers and the service account in the settings, the APNs key for iPhone, and that the technician allowed notifications. Technicians → Send a notification tells you when nobody could be reached.
Location stops in the background	Allow location always and remove battery optimisation for the app on the phone.

Support

Installation help and bug fixes are included for 6 months, with lifetime updates. Contact us through the marketplace page where you bought the module or write to support@taqnix.com with your Odoo version and a screenshot.
